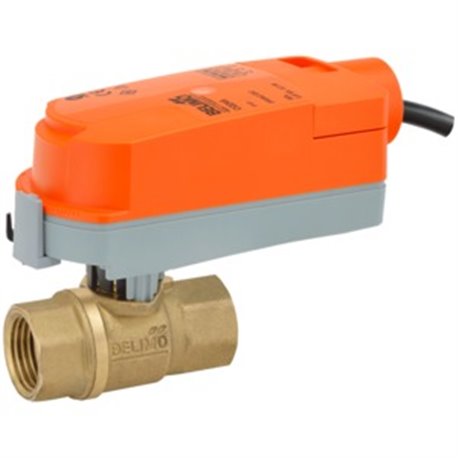

Belimo Z2050Q-F+CQB24-SR-R Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050Q-F+CQB24-SR-R is a zonetight valve assembly designed for efficient flow control in various applications. This 2-way valve is suitable for both chilled and hot water with a capacity of 1.4 Cv. It works using a 24 VAC modulating control signal and fits well in areas where space is limited.

• Compact size for space-restricted areas
• Low power consumption
• Zero leakage operation

Product Highlights

This product is mainly used in large commercial buildings where high close-off and control over flow variation is crucial. Typical applications include unit ventilators, fan coil units, and VAV reheat coils.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050Q-F+CQB24-SR-R

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.3 W Running, 0.15 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Valve Size: 0.5 [15]
