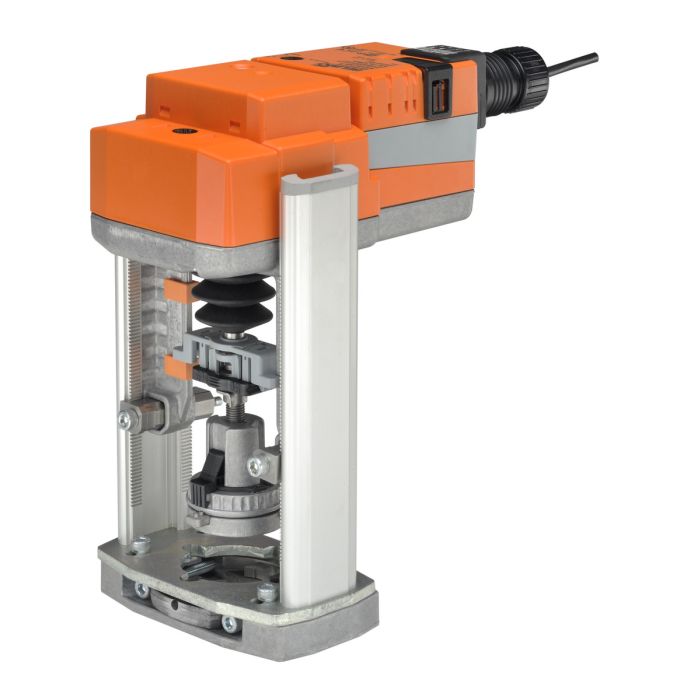

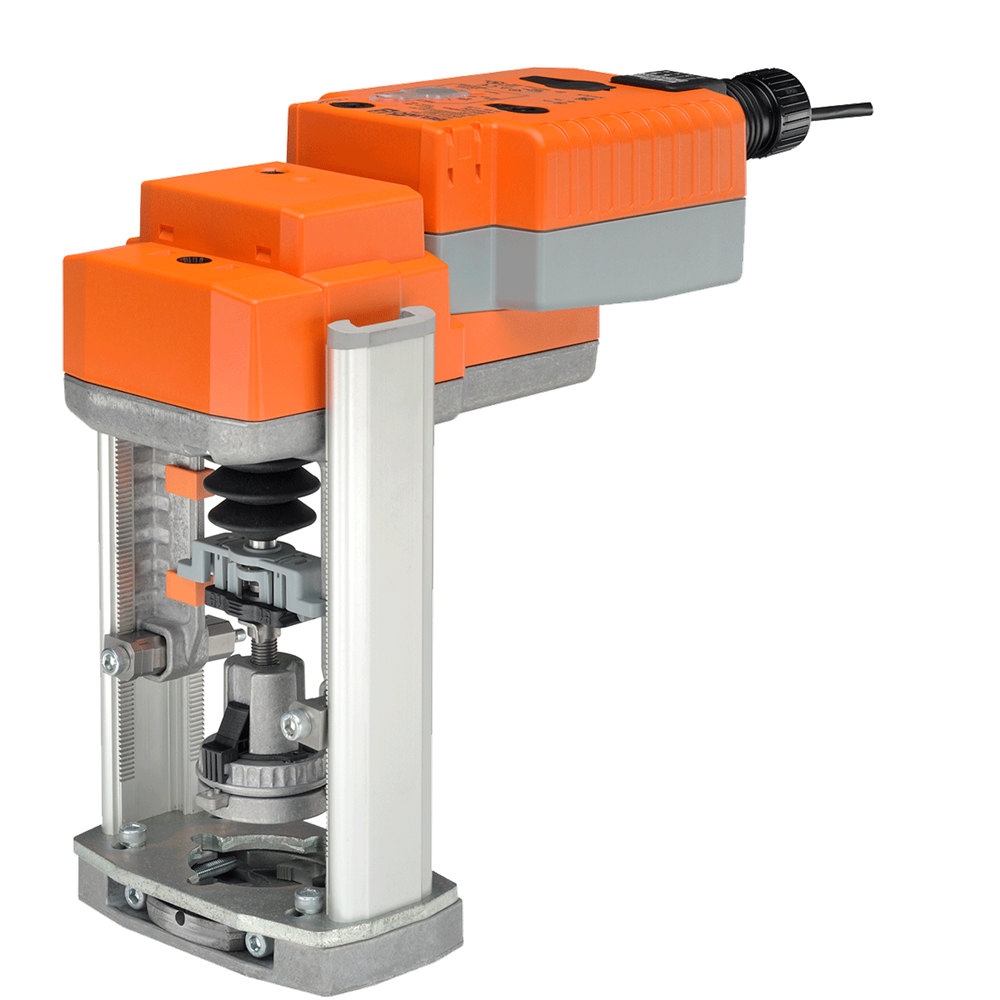

Belimo UGVL+SVX24-SR Valve And Actuator Linkage, Retro Kit

Product Description

The Belimo UGVL+SVX24-SR is a valve and actuator linkage retro kit designed for HVAC applications. It provides a universal fit for LV and SV series actuators. This kit enables easy attachment to globe valves, making it suitable for various configurations. It offers a linear force of three hundred forty foot-pounds.

• Compatible with LV and SV series actuators
• Supports both normally open and normally closed valve configurations
• Easy installation with included mounting hardware

Product Highlights

The UGVL+SVX24-SR linkage ensures efficient operation of HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: UGVL+SVX24-SR

Technical Specifications

• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Fluid: Chilled or hot water and steam
• Force: 1500 N (340 lbf)
• Power Consumption (Holding): 2 W
• Power Consumption (Running): 1.5 W
• Voltage AC/DC: AC/DC 24 V
• Stroke: 0.6 inches (15 mm) LV, 3/4 inches (20 mm) SV
