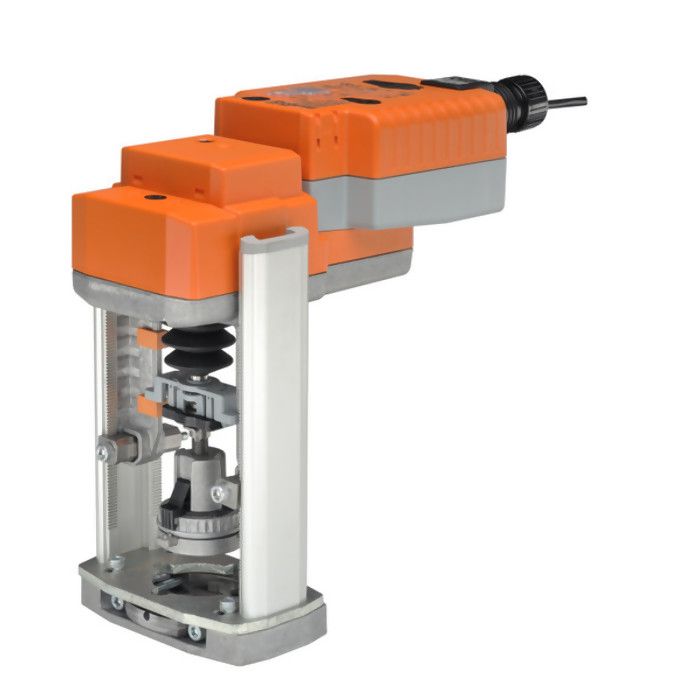

Belimo UGVL+LVKX24-SR Valve And Actuator Linkage, Retro Kit

Product Description

The Belimo UGVL+LVKX24-SR is a valve and actuator linkage retrofit kit designed to provide compatibility with LV and SV series actuators. This kit is suitable for installing on globe valves ranging from half inch to two inches. It supports both normally open and normally closed configurations, making it versatile for various applications.

• Compatible with LV and SV actuators.
• Installation supports 0.5 inches to 2 inches globe valves.
• Includes all necessary mounting hardware.

Product Highlights

The Belimo UGVL+LVKX24-SR enables easy installation and is ideal for modifying existing systems in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: UGVL+LVKX24-SR

Technical Specifications

• Actuator Type: Electrical fail-safe
• Fluid: Chilled or hot water and steam
• Force: 500 N [115 lbf]
• Voltage: AC/DC 24 V
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 35 seconds
• Running Time (Motor): 90 seconds
• Stroke: 0.6 inches [15 mm] LV, 0.75 inches [20 mm] SV
