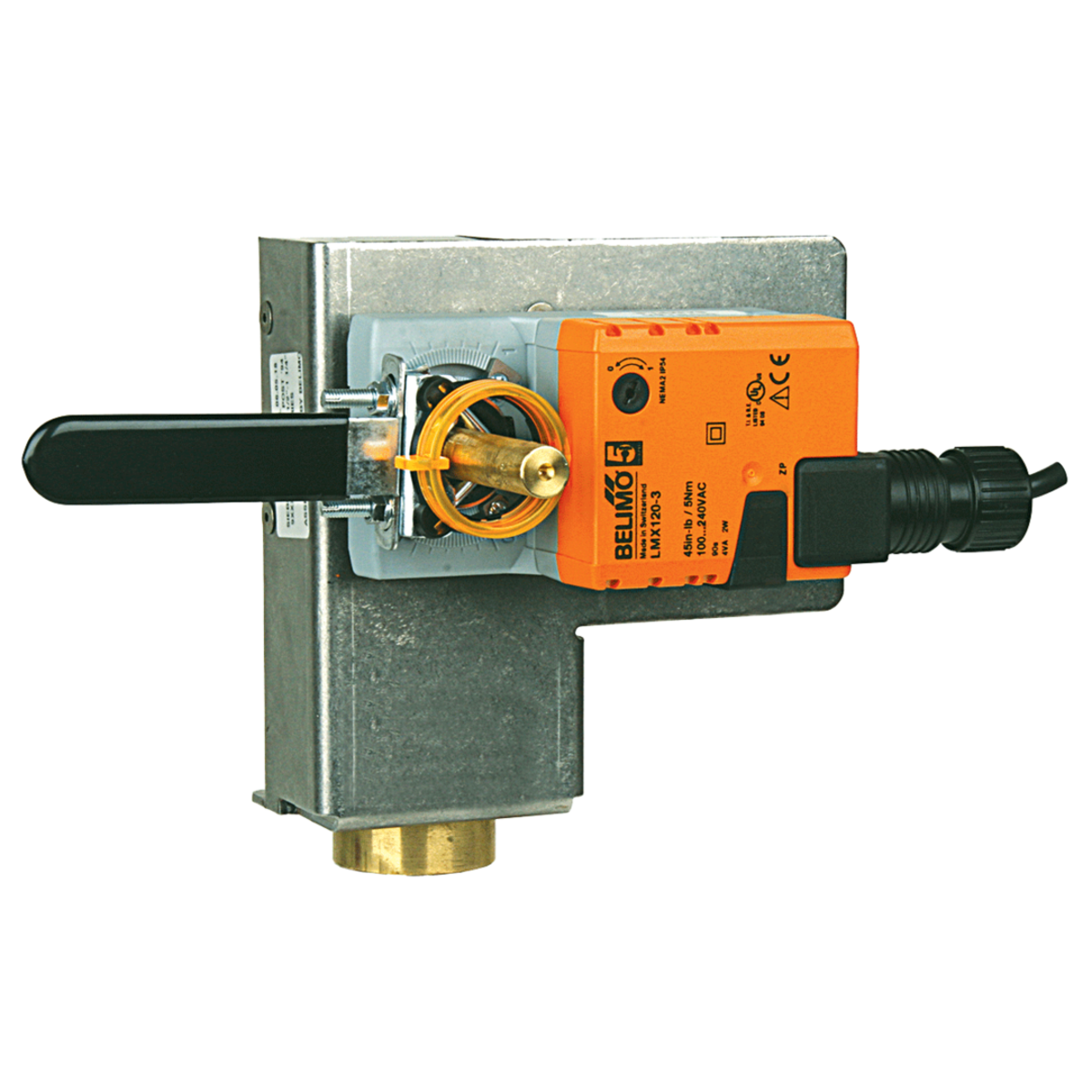

Belimo UGLK1274 Valve Linkage, Retro Kit

Product Description

The BELIMO UGLK1274 is a universal globe linkage kit designed for Siemens 2 or 3-way valves, fitting 4 in., 5 in., and 6 in. sizes. It is compatible with GMB(X), AFB(X), and GKB(X) actuators. This kit restores service to the valve without removal, saving downtime.

• Designed To Easily Attach To The Valve Bonnet On Select Competitor Valves Utilizing Belimo Actuators
• This Kit Is Used To Restore Service To The Valve Without Removal Of The Valve, Saving Down Time
• The Unique Collar Design Allows The UGLK To Be Mounted On Various 2-Way Or 3-Way Valves

Product Highlights

The UGLK1274 retrofit kit is easy to install and provides a reliable solution for restoring service to Siemens globe valves.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: UGLK1274

Technical Specifications

• Brand: Belimo
• Part #: UGLK1274
• Stroke: 1-1/2"(33teeth)
• Type: Accessory
• Accessory Type: Retrofit Kit
• Size: 4 to 6 in
• Connections: 3' (0.9 m) 18GA plenum rated cable
• Life Expectancy: 100,000+ cycles
• Materials of Construction: Plastic, aluminum, steel
• Fail Safe: 35 seconds (not on all models)
• Supply Voltage: 24 VAC/VDC, 120 VAC, 230 VAC
• Control Signal: On-Off, floating or proportional (MFT functionality optional)
• Noise (Actuator Type): SV Series: 55 dB LV Series: 45 dB EV/RV Series: 65 dB
• Conduit Connection: 1/2" conduit fitting appliance cable
• Feedback: Dependent on model
• Auxiliary Switch: Add-on, @SPDT, 3A @ 250V,
• Force (Actuator Type): LV Series: 112 foot lbs (lbf) SV Series: 337 foot lbs (lbf) AVK Series: 450 foot lbs (lbf) EVB Series: 562 foot lbs (lbf) RVB Series: 1011 foot lbs (lbf)
• Compatible Actuators: Actuator included in part number
• Actuator Mounting: Included in part number
• Drive Time: 90 sec (variable on MFT)
• Operating Temperature: -22 to 122 F (-30 to 50 C)
• Operating Humidity: 5-95% non-condensing
• Enclosure Rating: NEMA 2 / IP54, UL enclosure type 2
• Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
