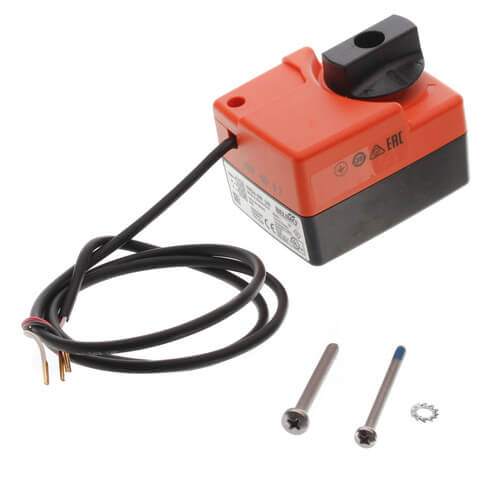

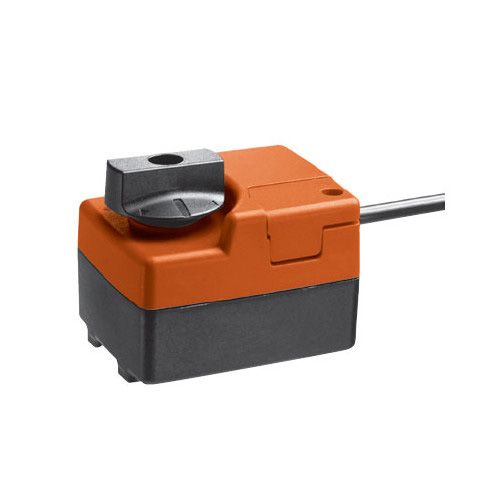

Belimo TR24-SR - Non-Spring Return Damper Actuator - 24 VAC/DC

Product Description

The Belimo TR24-SR Non-Spring Return Damper Actuator provides reliable proportional control for dampers in HVAC systems. Powered by 24 VAC or 24 VDC, it ensures efficient operation in various applications.

• Proportional control for HVAC dampers
• Operates on 24 VAC or 24 VDC power supply
• Non-spring return mechanism

Product Highlights

This actuator is designed for precise control of dampers, making it ideal for HVAC systems. The 24 VAC/DC power supply ensures compatibility with most control systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: TR24-SR

Technical Specifications

• Torque: 18 lb-in
• Power Supply: 24 VAC/DC
• Running Time: 90 seconds
• Actuator Type: Proportional
• Fail Safe Mode: Non-Spring Return
• Manual Override: Yes
• Nominal Voltage: 24 VAC 50/60 Hz, 24 VDC
• Power Consumption: 0.5W
• Ambient Temperature: -22°F to +122°F
• Electric Connection: 3 ft. plenum rated cable
• Control Input Values: On/Off, Floating Point
