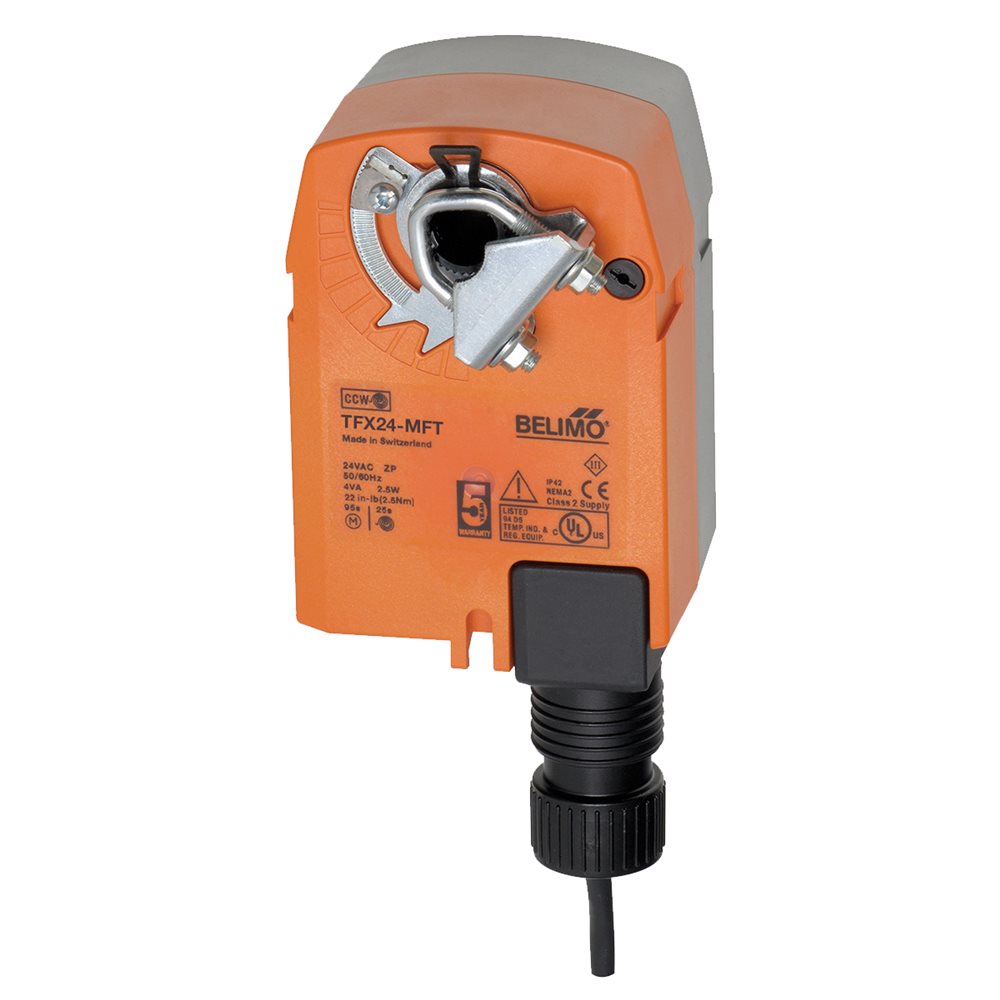

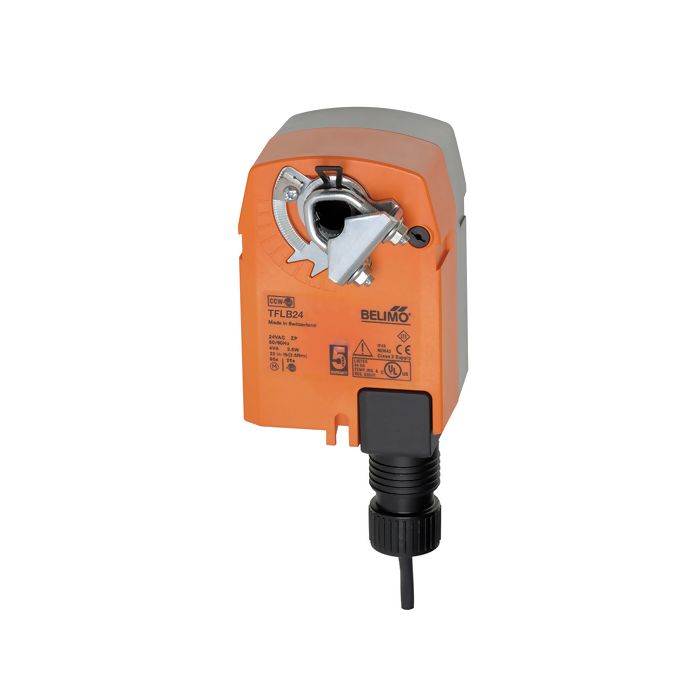

Belimo TFX24-MFT direct coupled actuator 24 VAC 22 in-lb

Product Description

The BELIMO TFX24-MFT is a direct coupled actuator designed for modulating control, featuring spring return operation and 24 VAC power. This actuator incorporates Multi-Function Technology (MFT) for versatile applications. It provides 22 in-lb torque and operates efficiently with 2.5 W running power and 1 W holding power, ensuring reliable performance in various conditions.

• For Control Of Air Dampers
• Provide True Spring Return Operation For Reliable Fail-Safe Application And Positive Close Off On Air Tight Dampers
• Actuator May Be Stalled Anywhere In Its Normal Rotation Without The Need Of Mechanical End Switches

Product Highlights

Modulating, spring return actuator with Multi-Function Technology for air damper control.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: TFX24-MFT

Technical Specifications

• Enclosure Rating: NEMA 2, IP42, UL Enclosure Type 2
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 1 W
• Operating Temperature: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 10 ft. Or 16 ft. 18 GA Appliance Or Plenum Cables, With Or Without 1/2 in. Conduit Connector
• Actuator Type: Spring return
• Angle of Rotation: 95
• Control Type: MFT/Programmable

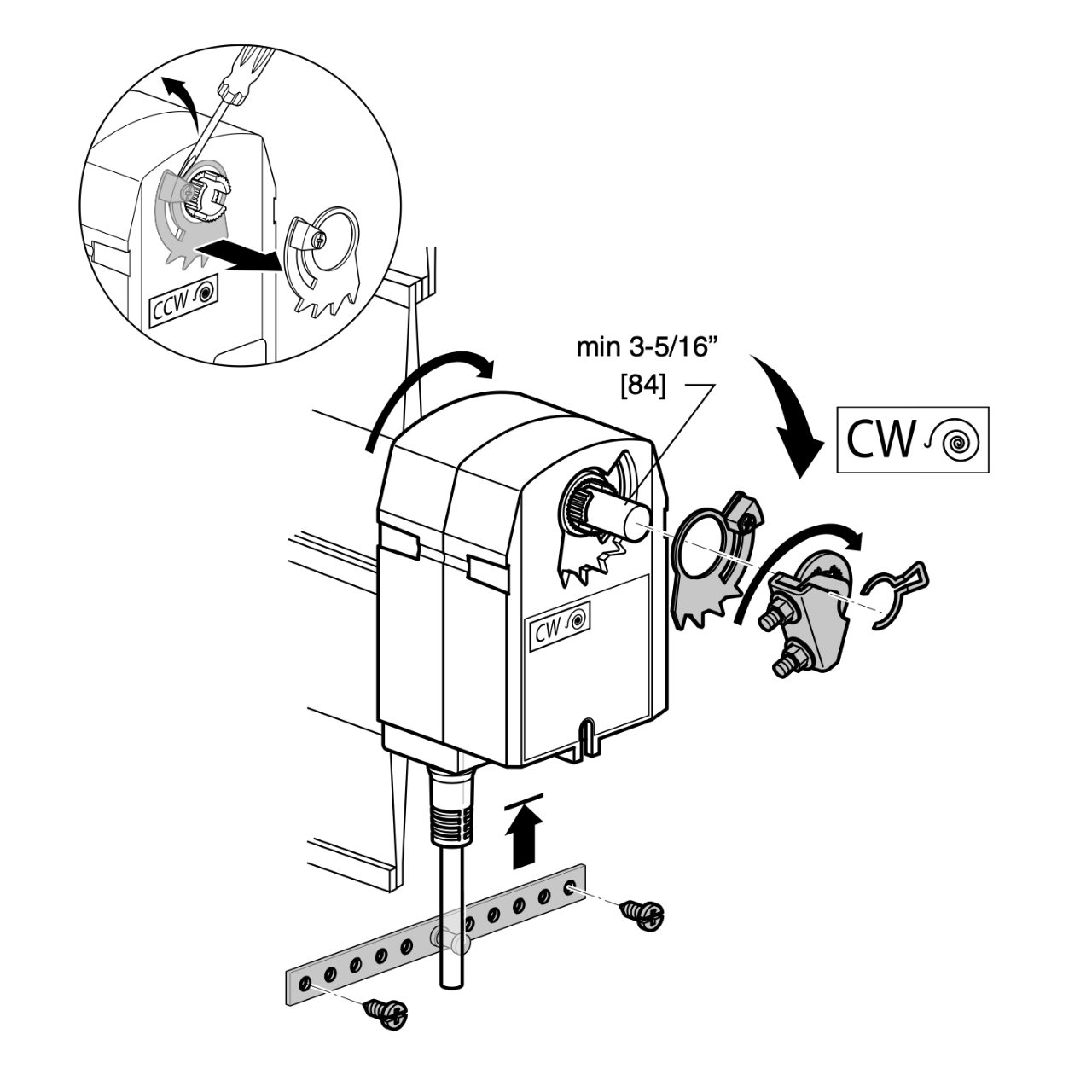

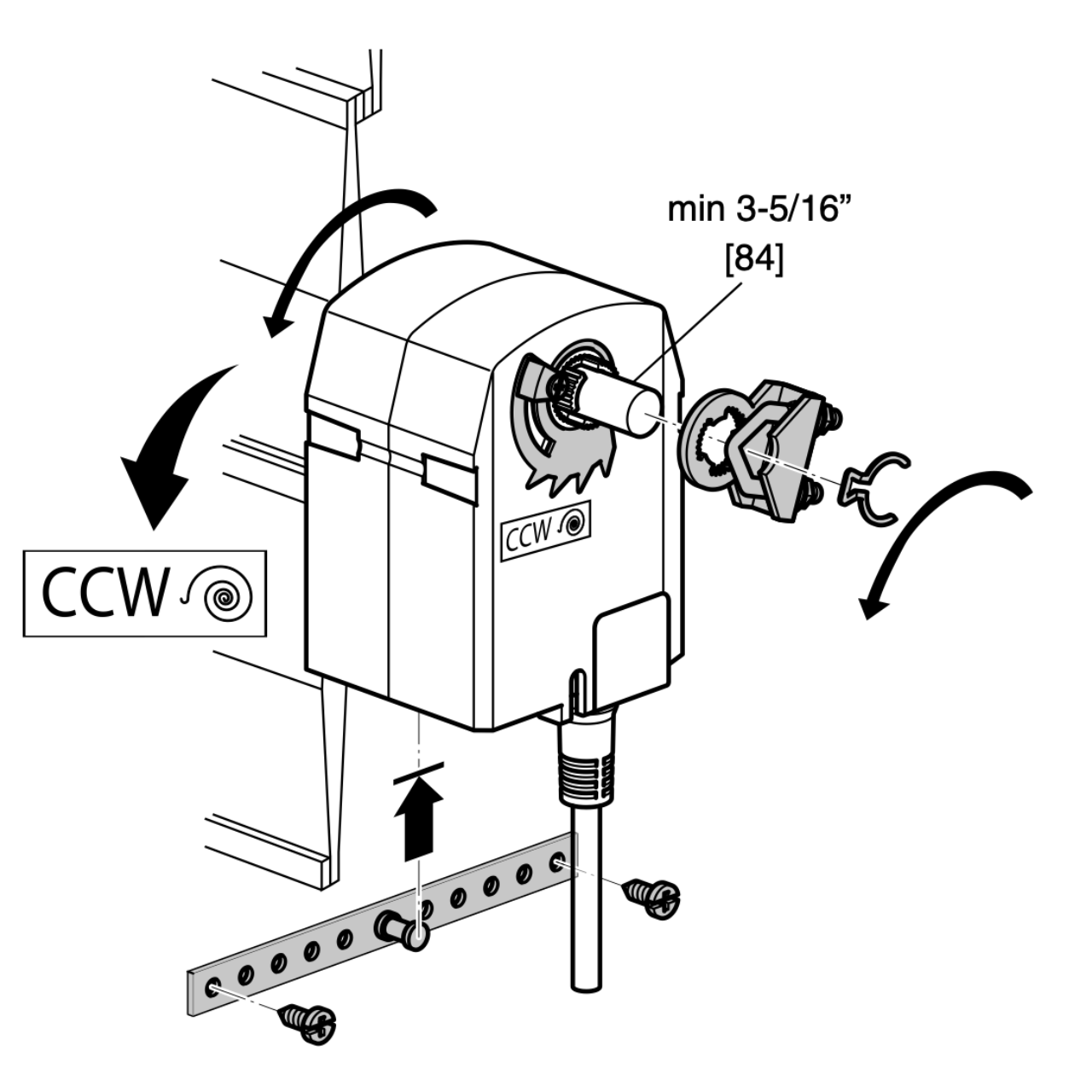

• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Running Time (Fail-Safe): <25 seconds
• Running Time (Motor): 150 seconds
• Running Time Range (Motor): 75...300 seconds
• Safety Function: YES
• Torque: 22 inch-pound [2.5 Nm]
• Input Voltage: AC/DC 24V
• Power Consumption (Wire Sizing): 4 VA
• Direction of Motion (Motor): selectable with switch 0/1
• Control Signal: 2...10 V
