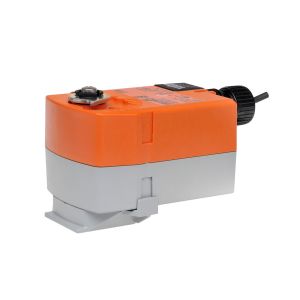

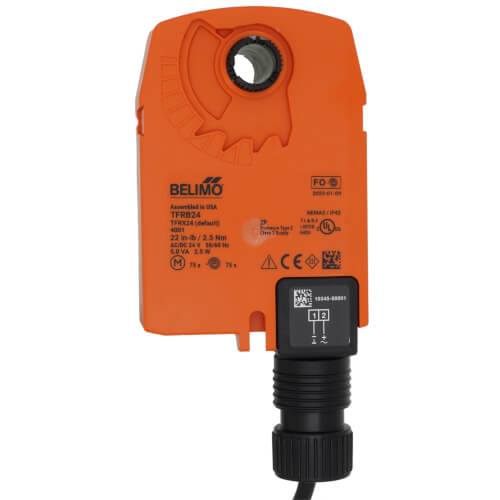

Belimo TFRB24 Direct Coupled Actuator 22 in-lb

Product Description

The Belimo TFRB24 is a direct coupled actuator with a torque rating of 22 in-lb. This actuator operates on 24 VAC or DC power and features spring return functionality for effective positioning. It is designed for reliable performance in HVAC systems.

• Power consumption: 2 W running and 1.3 W holding
• Protection category: IP42, NEMA 2
• Electrical connection includes a three-foot, eighteen-gauge appliance cable with a half-inch conduit connector

Product Highlights

This actuator provides true spring return operation for reliable fail-safe applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: TFRB24

Technical Specifications

• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Angle of Rotation: 95 degrees
• Control Type: On/Off
• Running Time (Motor): 75 seconds
• Running Time (Fail-safe): Less than 75 seconds
