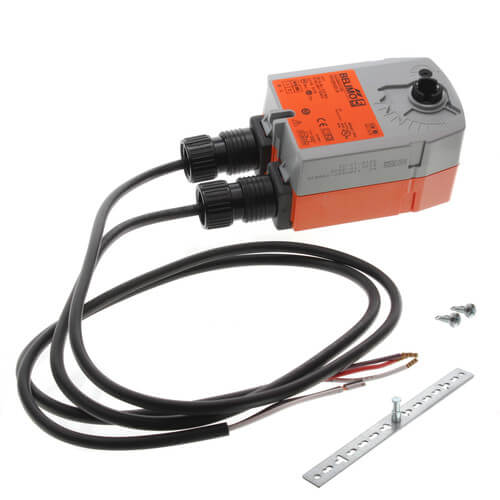

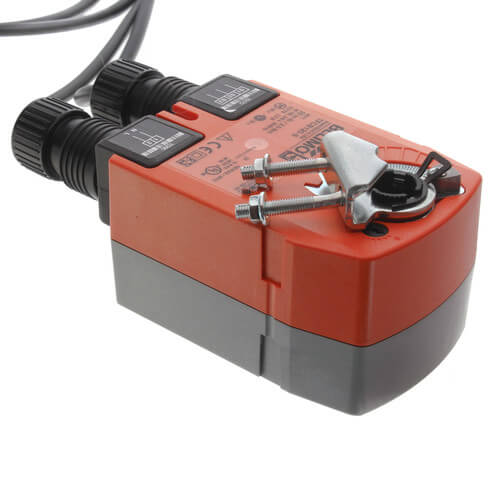

Belimo TFCB120-S Spring Return Damper Actuator 18 in-lb 120V On/Off

Product Description

Belimo TFCB120-S Spring Return Damper Actuator is designed for reliable control of dampers in HVAC systems. This model offers 18 lb-in torque and operates on 100 to 240 VAC power. It is an On/Off actuator and ensures fail-safe operation with its spring return mechanism.

• Easy-to-adjust mechanical stop
• True mechanical spring return
• Built-in auxiliary switch

Product Highlights

This actuator provides consistent torque and reliable fail-safe operation. It offers straightforward installation with a direct coupling to the damper shaft and includes a clear position indicator to check damper status easily. The rugged housing ensures durability.

Product Information

Standard Information

• Brand: Belimo
• MPN: TFCB120-S
• Product Type: Actuator

Technical Specifications

• Torque: 18 lb-in
• Power Supply: 100 to 240 VAC
• Fail Safe Mode: Spring Return
• Control Input: On/Off
• Direction of Rotation: Reversible with CW/CCW mounting
• Running Time: Less than 30 seconds (motor), Less than 25 seconds at 4°F to 122°F (spring), Less than 60 seconds at -22°F (spring)
• Power Consumption: 3W (running), 1.5W (holding)
• Weight: 1.85 lbs
