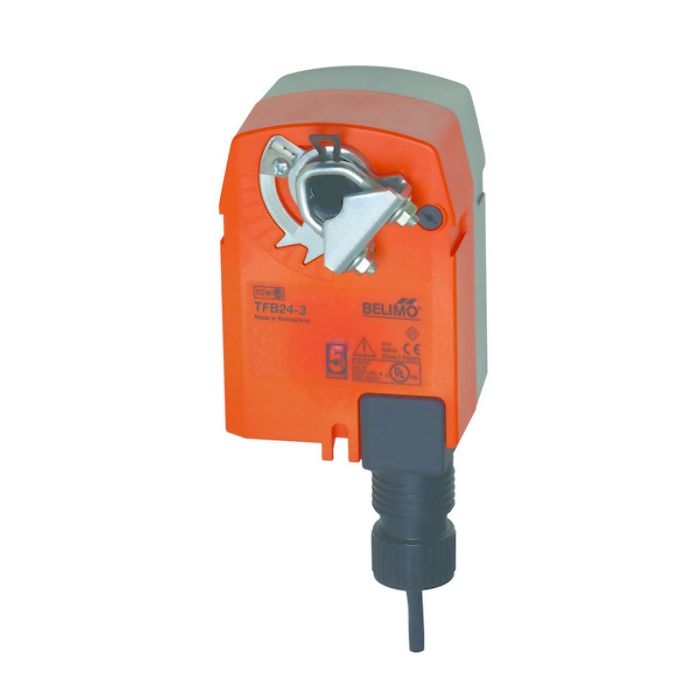

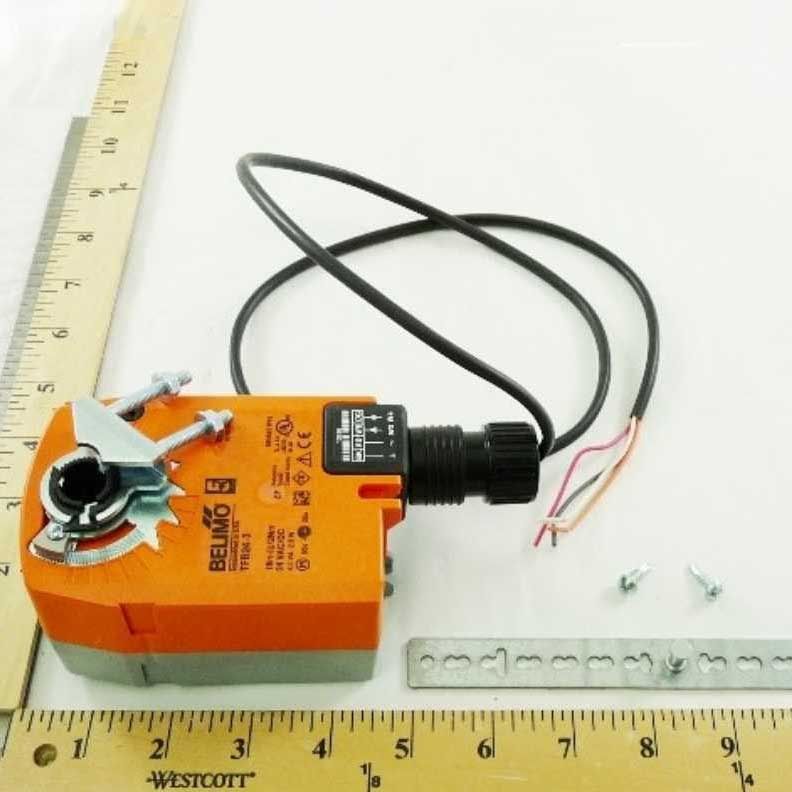

Belimo TFB24-3 Direct Coupled Actuator 22 in-lb

Product Description

The Belimo TFB24-3 is a direct coupled actuator designed for reliable operation in HVAC systems. With a torque rating of twenty-two inch-pounds, it is suitable for on/off or floating point control. This model operates at twenty-four volts AC and features a spring return function for fail-safe applications.

• Directly couples to the air damper shaft.
• Easy installation with a three-foot cable.
• Reliable performance with a mechanical spring return.

Product Highlights

The Belimo TFB24-3 actuator ensures optimal performance in HVAC applications where reliable damper control is necessary.

Product Information

Standard Information

• Brand: Belimo
• MPN: TFB24-3

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Power Consumption: 2.5 W Running, 1 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
