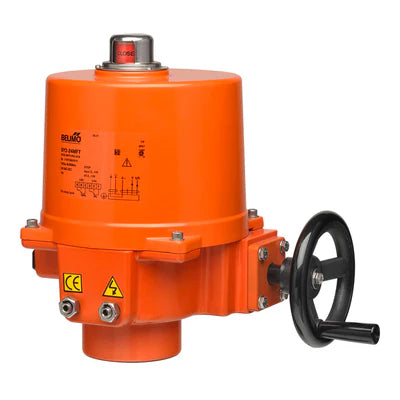

Belimo SY7-120MFT Valve Actuator Non-Spg 120V MFT SW NEMA 4H

Product Description

The Belimo SY7-120MFT is a valve actuator designed for precise control in various applications. This actuator operates on a 120V power supply and features a non-fail-safe mechanism. It is specifically suitable for controlling flow in chilled or hot water systems, accommodating up to sixty percent glycol and steam.

• Non-fail-safe actuator type
• IP66/67 rated for NEMA 4X environments
• Install with four wires plus ground for optimal performance

Product Highlights

The SY7-120MFT actuator is engineered for reliable and efficient operation in demanding conditions. Features include programmable control, auxiliary switches, and manual override capabilities for ease of use.

Product Information

Standard Information

• Brand: Belimo
• MPN: SY7-120MFT

Technical Specifications

• Voltage AC/DC: AC 120V
• Running Time (Motor): 59 seconds
• Angle of Rotation: 90 degrees
• Auxiliary Switches: 2 x SPDT
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Controllable Flow Range: Quarter turn mechanically limited
• Pressure Independent: No
• Valve Size: 10 (250)
