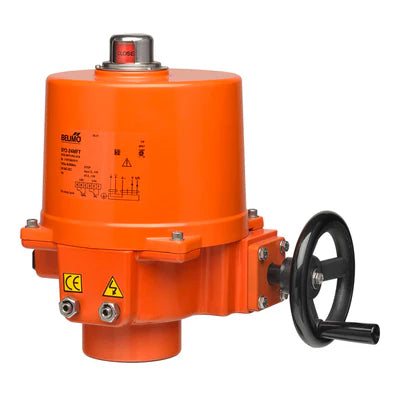

Belimo SY4-24MFT Valve Actuator Non-Spg 24V MFT SW NEMA 4H

Product Description

The Belimo SY4-24MFT Valve Actuator is a non-spring return, MFT programmable actuator designed for various HVAC applications. It operates with 24V AC/DC power and is equipped with a sturdy hand wheel manual override. This actuator is ideal for use with Belimo's HD(U), Grooved, and SHP butterfly valves, as well as other quarter-turn valve applications.

• Non-spring return actuator
• 24V AC/DC power
• Manual override available

Product Highlights

The Belimo SY4-24MFT meets NEMA 4X standards, ensuring a high level of protection against environmental factors. It features a position indicator, internal thermal motor overload protection, and dual auxiliary switches. Its efficient gear drive mechanism ensures smooth operation while being reliable for commercial and HVAC use.

Product Information

Standard Information

• Brand: Belimo
• MPN: SY4-24MFT

Technical Specifications

• Voltage: AC/DC 24V
• Angle of Rotation: 90 degrees
• ANSI Class: 150
• Controllable Flow Range: 75B0
• Cv: 1550
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 10 inches (250 mm)
• Actuator Type: Non fail-safe
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• Manual Override: Hand wheel
• Running Time (Motor): 20 seconds
