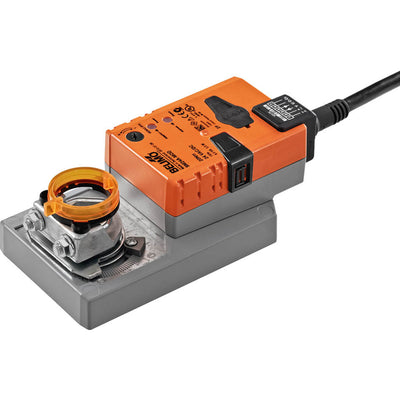

BELIMO SM24A-MOD Damper Actuator Hybrid Modulating AC/DC 24V 20 Nm

Product Description

The BELIMO SM24A-MOD is a high-performance damper actuator designed for modulating control in HVAC systems. This hybrid model operates on both AC and DC 24V and offers a torque of 20 Nm.

• Integrated interface for BACnet MS/TP, Modbus RTU, and MP-Bus
• Connection for passive, active, or switching contact sensors
• Manual override with push-button, adjustable angle of rotation, and mechanical end stops for precise control

Product Highlights

This actuator features a non-failsafe operation and is equipped with a universal shaft clamp. It's suited for both commercial and industrial environments, ensuring reliable performance and easy integration into existing systems.

Product Information

Standard Information

• Actuator Type: Non-failsafe
• Angle of Rotation: 95 degrees

Technical Specifications

• Control Type: BACnet MS/TP, Modbus RTU, MP-Bus, Hybrid
• Voltage: AC/DC 24V
• Torque: 20 Nm
• Degree of Protection: IP54
• Electrical Connection: Cable
• Manual Override: With push-button can be locked
• Mechanical Interface: Universal shaft clamp reversible 10...20 mm
• Power Consumption (Running): 3.5 W
