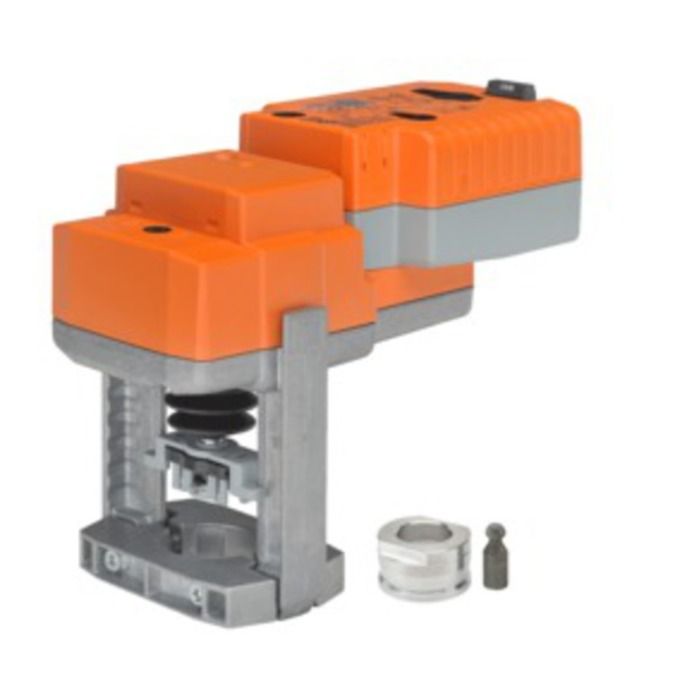

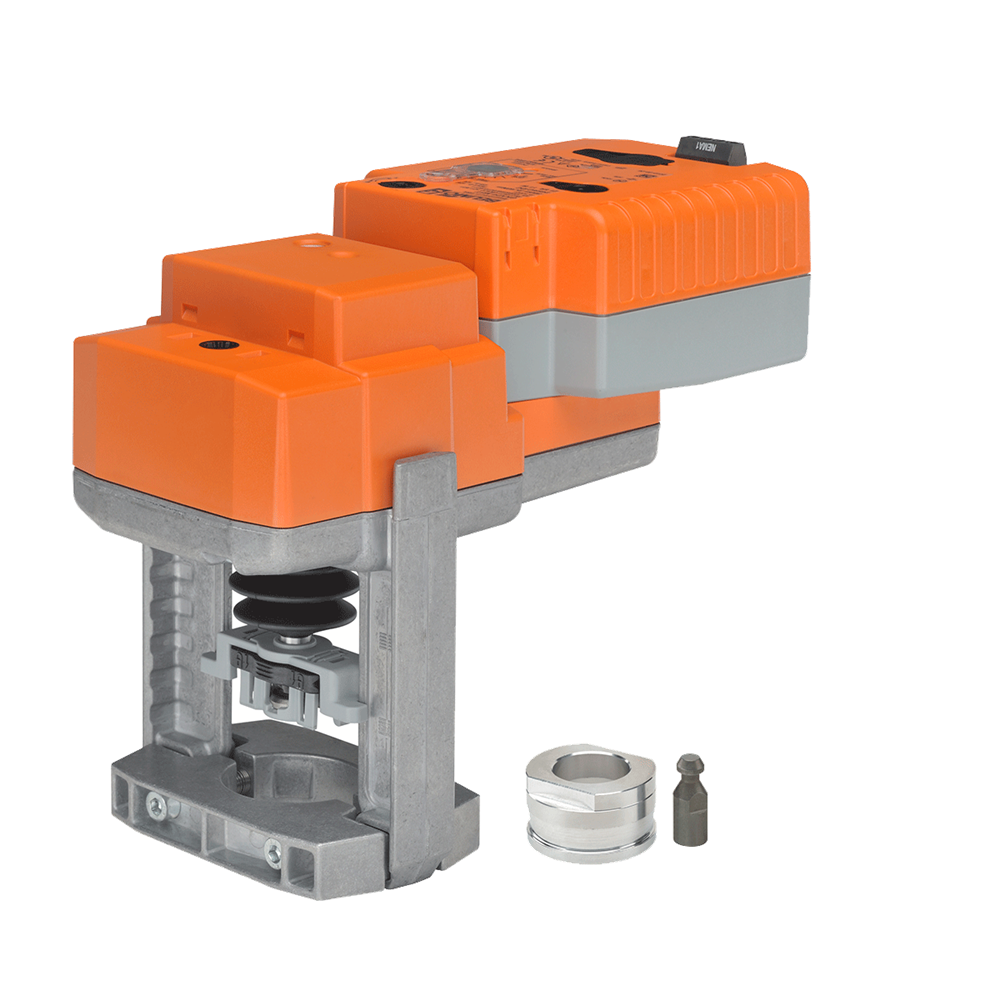

Belimo SGVL+SVKX24-SR Valve And Actuator Linkage, Retro Kit

Product Description

The Belimo SGVL+SVKX24-SR is a valve and actuator linkage retro kit designed for HVAC applications. This kit allows for easy attachment of LV and SV series actuators to various Schneider globe valves. It is suitable for both two-way and three-way configurations while providing modulating control.

• Compatible with Schneider VB7000 and VB9000 valves.
• Provides 20 millimeters of linear travel for diverse valve sizes.
• Includes necessary hardware for easy installation.

Product Highlights

Ideal for HVAC control systems requiring reliable valve operation and integration.

Product Information

Standard Information

• Brand: Belimo
• Part Number: SGVL+SVKX24-SR

Technical Specifications

• Actuator Type: Electrical fail-safe
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: Cable
• Fluid: Chilled or hot water and steam
• Force: 1500 N [340 lbf]
• Power Consumption (Holding): 2 W
• Power Consumption (Running): 3 W
• Running Time (Fail-safe): Less than 35 seconds
• Voltage AC/DC: AC/DC 24 V
