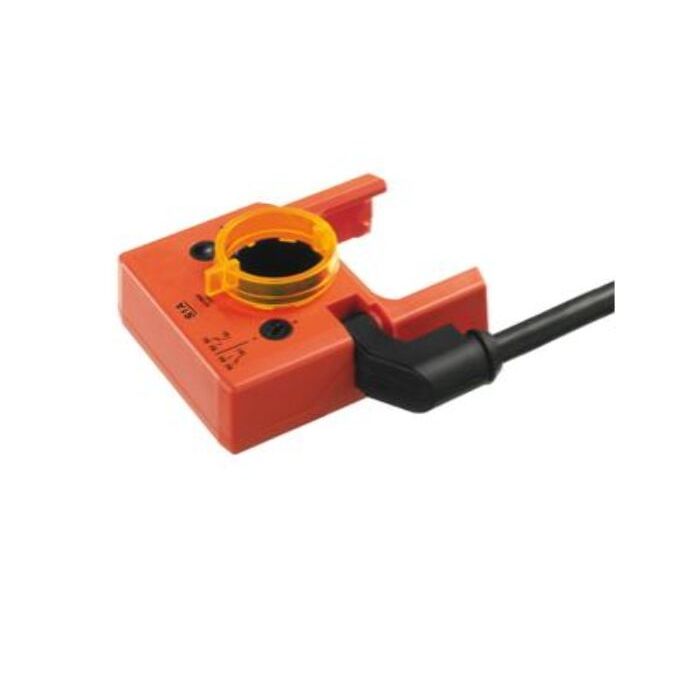

Belimo S1A Auxiliary Switch 1x SPDT 3A (0.5A inductive) @ 250 VAC max.

Product Description

The Belimo S1A auxiliary switch is designed to indicate when the desired damper position has been achieved. This switch is modular and mounts directly onto various actuator types including LM, NM, AM, and GM. The installation is secure, utilizing guiding grooves to ensure a proper fit. The auxiliary switch helps in controlling additional functions as part of a specific sequence.

• Adjustable switching point
• Used for signaling positions and exercising switching functions
• Directly attached by spindle clamp

Product Highlights

This product is crucial for effective control and signaling in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: S1A

Technical Specifications

• Auxiliary Switch Type: 1 x SPDT
• Switch Rating: 3A (0.5A inductive) @ 250 VAC max.
• Degree of Protection: IP54
• Electrical Connection: Cable
• Ambient Temperature Range: -22°F to +122°F
