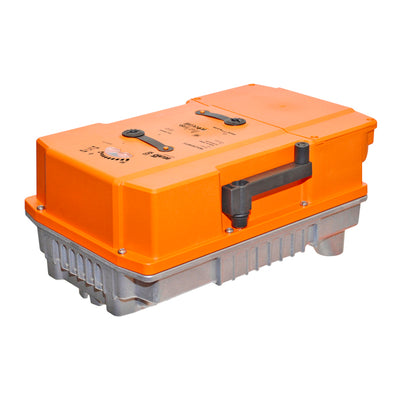

Belimo PRXUP-MFT-T Valve Actuator Non-Spring 24-240V MFT

Product Description

The Belimo PRXUP-MFT-T is a valve actuator designed for reliable operation in various applications. It operates on a voltage range of twenty-four to two hundred forty volts and is ideal for controlling chilled or hot water systems that may contain up to sixty percent glycol.

• Integrated linkage and visual position indicators for easy monitoring.
• Applicable in both indoor and outdoor settings.
• Non-fail-safe actuator with a torque of one hundred sixty Nm.

Product Highlights

Efficiently manage flow with this programmable actuator that supports two auxiliary switches.

Product Information

Standard Information

• Manufacturer: Belimo
• Voltage AC/DC: AC 24...240 V / DC 24...125 V

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 300
• Controllable Flow Range: 75 degrees
• Cv: 24
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch
• Actuator Type: Non fail-safe
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP66/67 NEMA 4X
• Electrical Connection: terminals
• Manual Override: 7 mm hex crank supplied
• Power Consumption (Holding): 6 W
• Power Consumption (Running): 20 W
• Running Time (Motor): 35 seconds to 90 degrees
