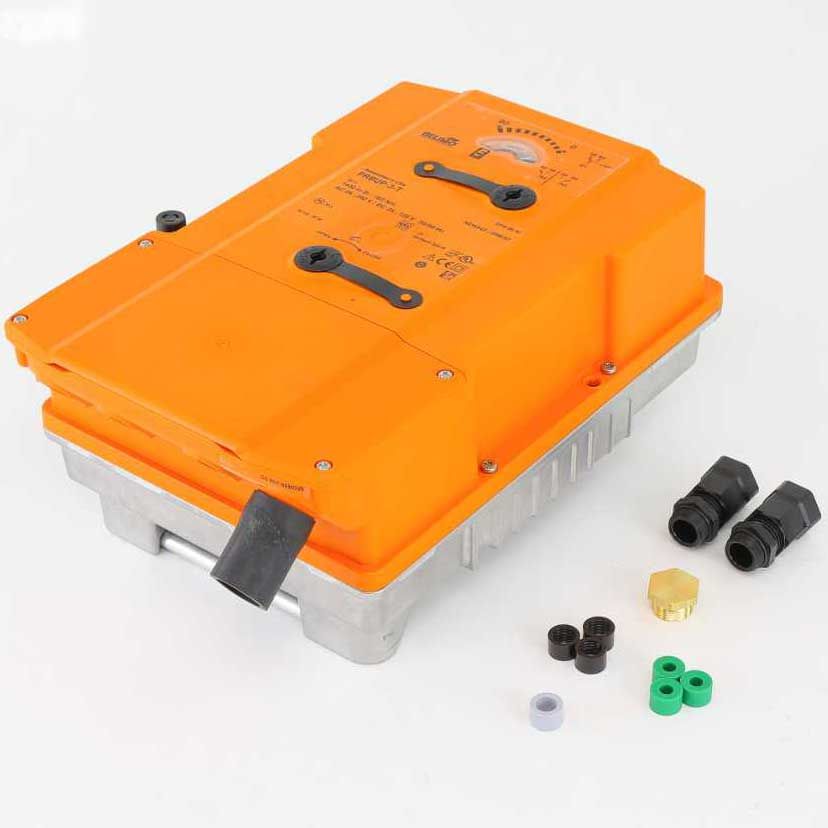

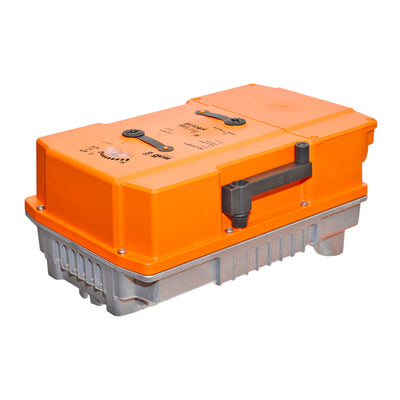

Belimo PRBUP-3-T Valve Actuator Non-Spring 24-240V On/Off/Floating Point

Product Description

The Belimo PRBUP-3-T Valve Actuator is essential for both HVAC and industrial applications. This non-spring actuator operates at voltages between 24 to 240V and supports on/off and floating point control. Suitable for a variety of environments, it ensures reliable operation over the long term.

• Non-spring return feature
• Supports a wide voltage range
• On/off and floating point control

Product Highlights

This actuator is suitable for indoor and outdoor use. It includes visual position indicators and auxiliary switches for enhanced functionality.

Product Information

Standard Information

• Voltage: 24-240V AC/DC
• Control Type: On/Off, Floating Point

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 90 degrees
• ANSI Class: Consistent with 125
• Auxiliary Switches: 2 x SPDT
• Control Type: Floating/3-point
• Controllable Flow Range: 90 degrees rotation
• Cv: 3136
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Potable water
• Manual Override: 7 mm hex crank supplied
• Pattern: 2-way
• Power Consumption (Holding): 6 W
• Power Consumption (Running): 20 W
• Pressure Independent: NO
• Product Type: Combo
• Running Time (Motor): 35 s / 90 degrees
• Valve Size: 8 inches (200 mm)
• Voltage AC/DC: AC 24-240V / DC 24-125V
