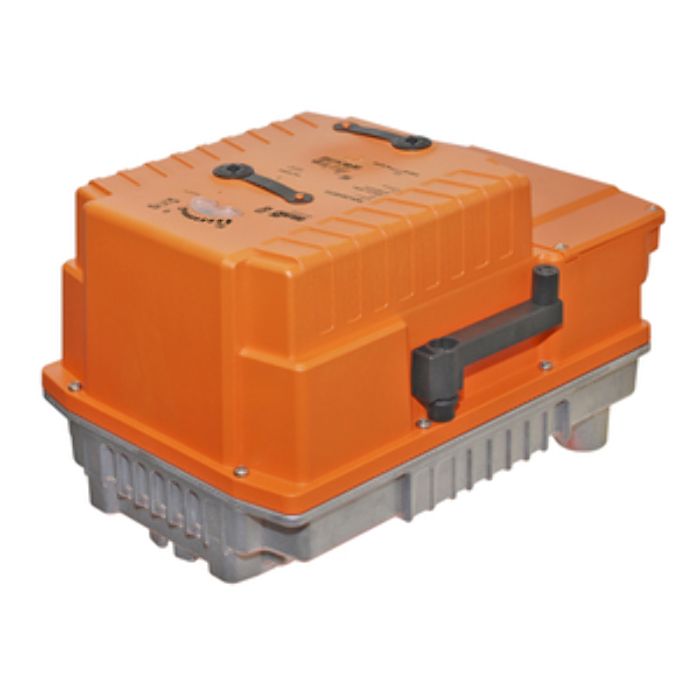

Belimo PKRXUP-MFT-T Direct Coupled Actuator 1400 in-lb

Product Description

Belimo PKRXUP-MFT-T is a direct coupled actuator that provides a reliable mechanism for regulating fluid flow in HVAC systems. This actuator features a low power consumption brushless DC motor and integrates electronics that offer fail-safe operation. Designed to handle a maximum torque of fourteen hundred inch-pounds, it supports a range of voltages from twenty-four to two hundred forty AC or direct current up to one hundred twenty-five volts.

• Includes an integrated visual position indicator.
• Features a thermostat and smart heater to prevent condensation.
• Compatible with BACnet MS/TP for easy integration into building control systems.

Product Highlights

This actuator is equipped with a durable NEMA 4X enclosure, making it suitable for indoor and outdoor applications. Adjustments to operation parameters can be made via factory presets, programmable tools, or smartphone applications with NFC capability.

Product Information

Standard Information

• Brand: Belimo
• Part #: PKRXUP-MFT-T

Technical Specifications

• Auxiliary Switches: 2 x SPDT
• Power Consumption: 52 W running, 9 W holding
• Operating Conditions: -22 F to 122 F
• Electrical Connection: Terminal blocks
• Degree of Protection: IP66/67, NEMA 4X
• Actuator Type: Electrical fail-safe
• Angle of Rotation: 90 degrees
• Control Type: MFT/Programmable
