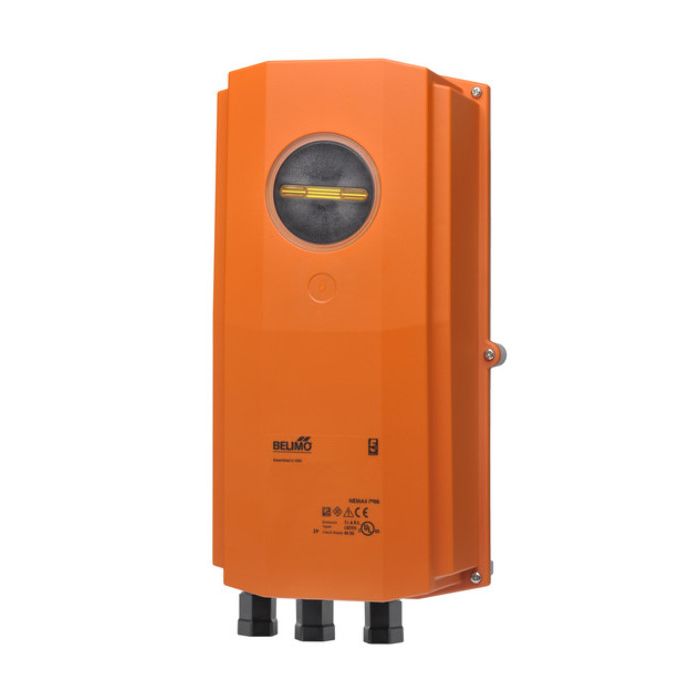

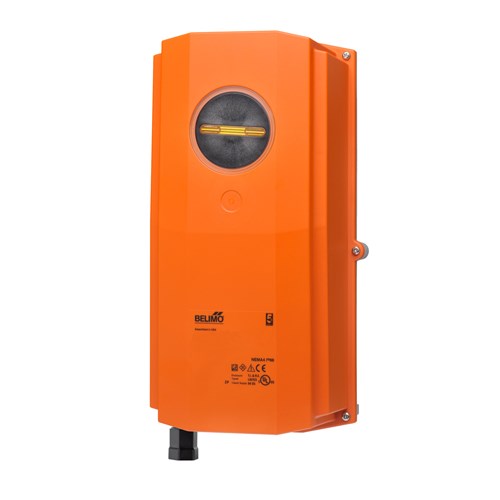

Belimo NFX24-SRN4 Direct Coupled Actuator 90 in-lb Replacement MPN

Product Description

The Belimo NFX24-SRN4 is a direct coupled actuator designed for HVAC control systems. This actuator provides a torque of ninety inch-pounds and operates at twenty-four volts AC. It features a modulating spring return design that allows for precise control of dampers and valves in heating, cooling, and ventilation systems.

• Modulating Spring Return Operation
• NEMA 4 Rated for Outdoor Use
• Works with 2 to 10 VDC or 4 to 20 mA Control Signals

Product Highlights

This actuator is suitable for a wide range of applications in HVAC systems. Its durable construction ensures reliable performance even in harsh environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: NFX24-SRN4

Technical Specifications

• Power Consumption: 3.5 W Running, 2.5 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 3 ft., 10 ft., or 16 ft. 18 GA Appliance Cable with 1/2 in. Conduit Connector
• Housing: IP66, NEMA 4X, UL Enclosure Type 4X
• Torque: 90 in-lbs
• Runtime: 95 Secs
• Voltage: 24 VDC
• Item Weight: 13.25 lbs per EA
