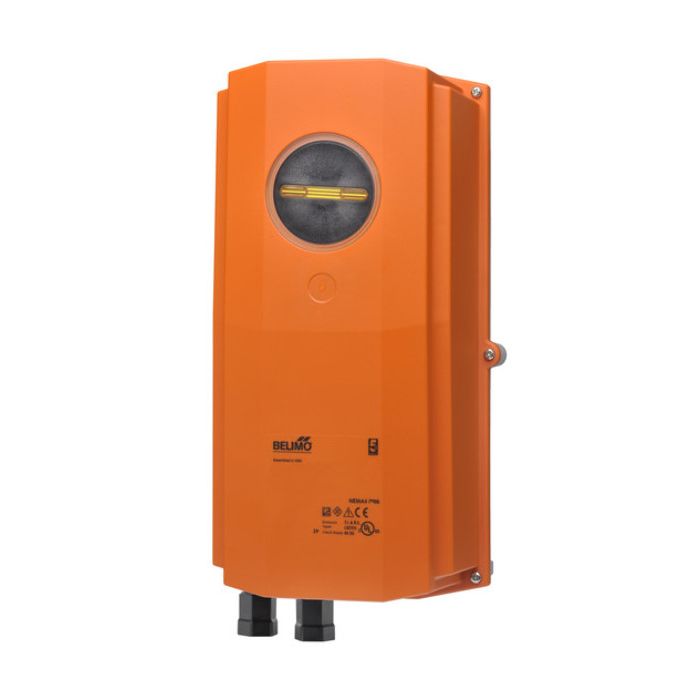

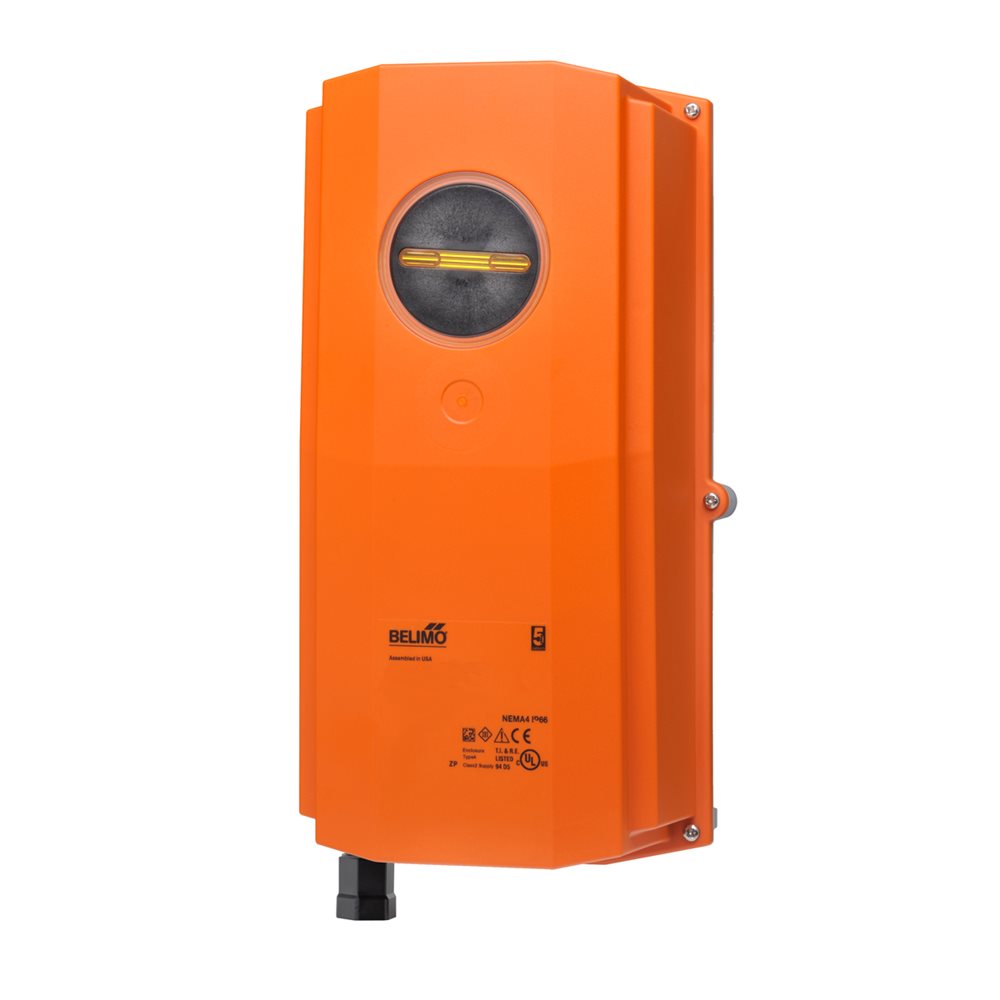

Belimo NFX24-MFT N4 Direct Coupled Actuator 90 in-lb

Product Description

The Belimo NFX24-MFT N4 is a direct coupled actuator designed for reliable performance in HVAC systems. This actuator delivers a torque of ninety in-lbs and operates on twenty-four volts AC and DC. With its spring return feature, it ensures dependable fail-safe operation.

• IP66 and NEMA 4 rated for harsh environments.
• Multi-Function Technology (MFT) for versatile applications.
• Designed for easy installation with flexible electrical connections.

Product Highlights

This product is suitable for various HVAC applications, offering a spring return mechanism that caters to positive close-off on dampers.

Product Information

Standard Information

• Brand: Belimo
• MPN: NFX24-MFT N4

Technical Specifications

• Torque: 90 in-lb
• Actuator Type: Spring return
• Degree of Protection: IP66, NEMA 4X
• Power Consumption: 6.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft, 10 ft, or 16 ft cables with 1/2 in. conduit connector
• Manual Override: 5 mm hex crank supplied
• Running Time (Motor): 150 seconds / 90 degrees
