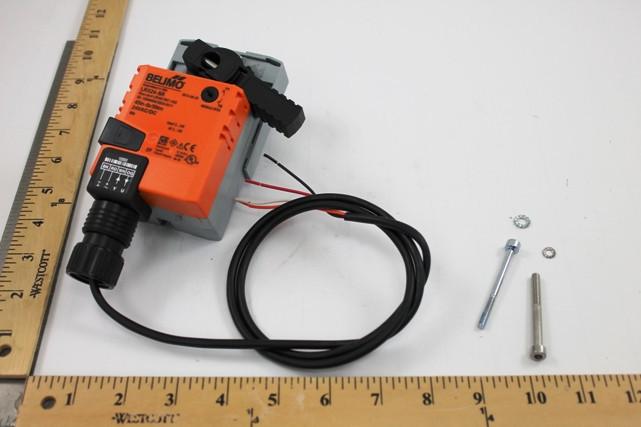

Belimo LRX24-SR Valve Actuator 24V Modulating

Product Description

The Belimo LRX24-SR is a high-efficiency, non-spring return proportional valve actuator, designed for precise control in HVAC applications. Suitable for use with 24V AC/DC power supplies, this actuator ensures robust performance and reliable operation.

• Compact and robust design suitable for tight installations.
• Energy efficient with low power consumption of 1.5W running and 0.4W holding.
• External push button for manual override, enhancing operational flexibility.

Product Highlights

This actuator is perfect for controlling air dampers, valve automation, and where precise modulation of flow is necessary. Its non-fail safe design ensures continued operation even under dynamic conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: LRX24-SR

Technical Specifications

• Voltage: AC/DC 24V
• Actuator Type: Non-spring return, proportional
• Power Consumption: 0.4W (holding), 1.5W (running)
• Control Type: Modulating, DC 2...10 V
• Manual Override: External push button
• Protection Class: IP54 NEMA 2 UL Enclosure Type 2
• Torque: 5 Nm
• Weight: 1.3 lbs
