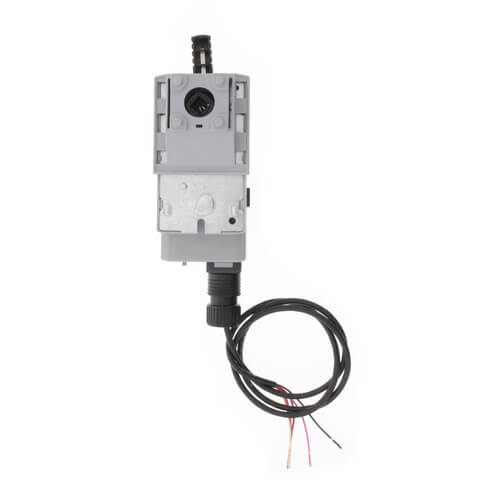

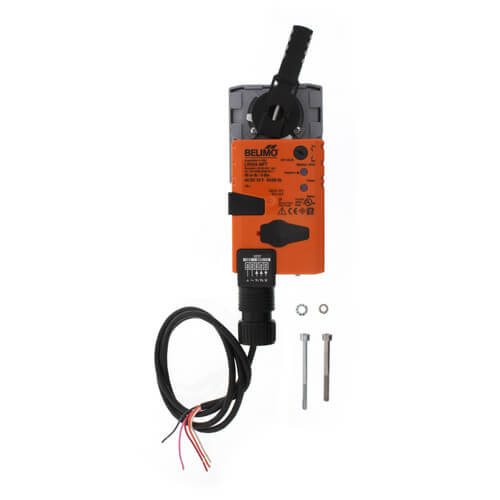

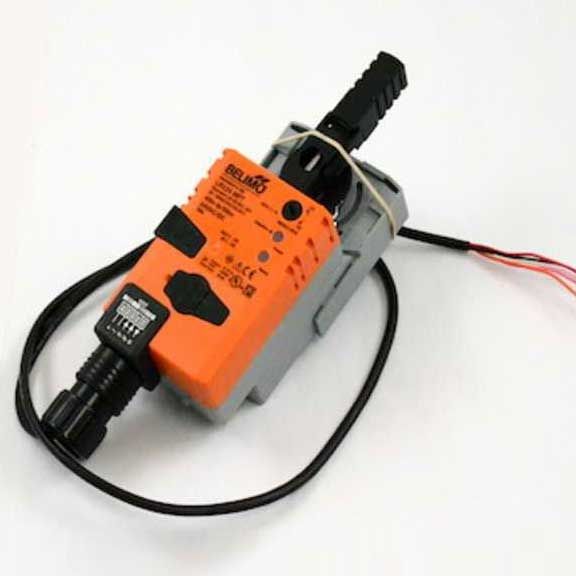

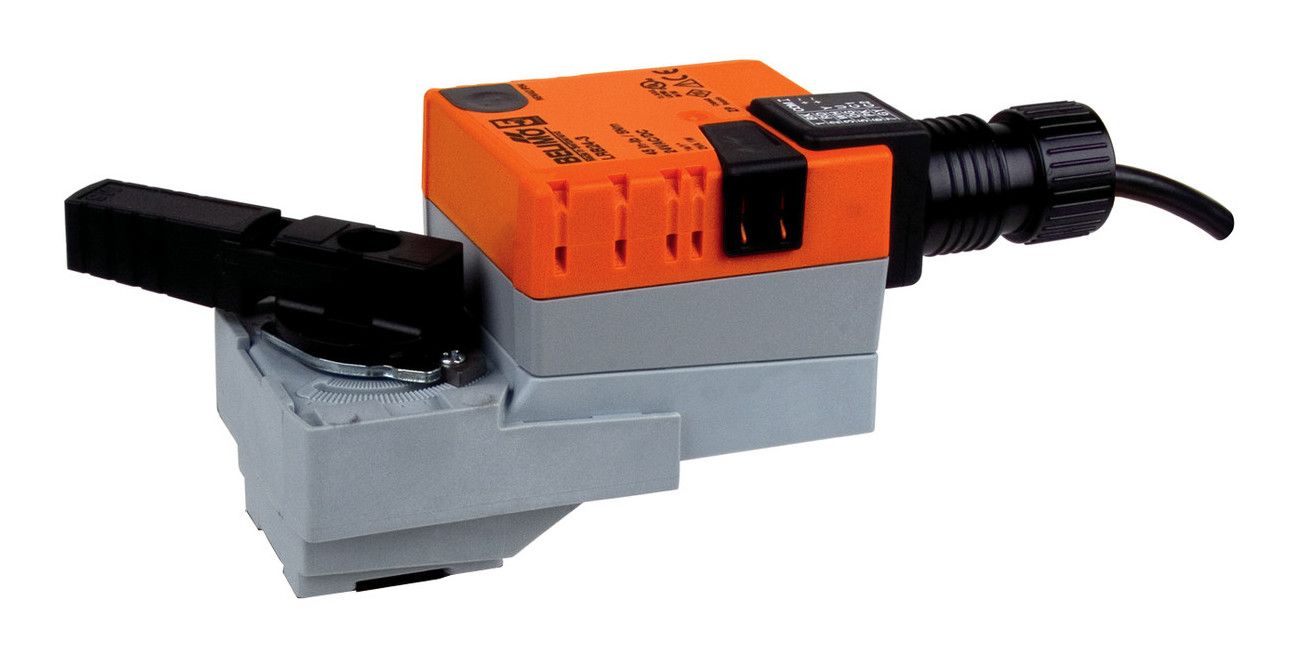

Belimo LRX24-MFT Direct Coupled Actuator 45 in-lb

Product Description

The Belimo LRX24-MFT is a direct coupled actuator with a torque rating of 45 in-lb. This actuator runs on 24 VAC and is designed for modulating applications without a spring return. The device utilizes multi-function technology for enhanced versatility.

• Operating Voltage: 24 VAC
• Torque Rating: 45 in-lb
• Control Type: MFT/Programmable

Product Highlights

This model features external push button manual override for maintenance ease and reliability across various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: LRX24-MFT

Technical Specifications

• Power Consumption: 2.5 W Running, 1.2 W Holding
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: 3 ft, 10 ft, and 16 ft 18 GA plenum rated cable with 1/2 in conduit connector
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Angle of Rotation: 90 degrees
• Cv: 0.3
• Trim: Stainless steel
• Fluid Compatibility: Chilled or hot water up to 60% glycol
