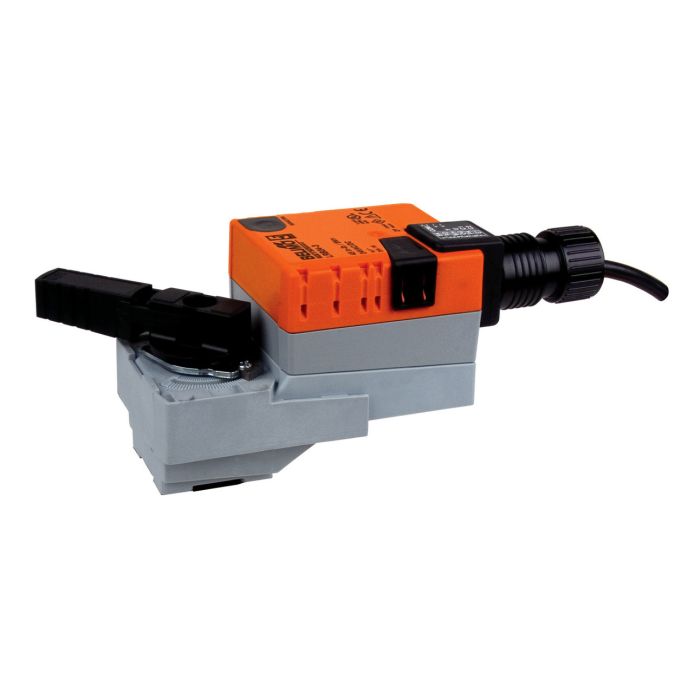

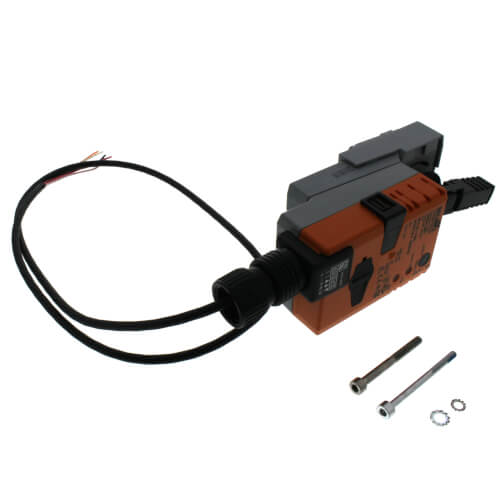

Belimo LRB24-MFT Direct Coupled Actuator 45 in-lb

Product Description

The Belimo LRB24-MFT is a direct coupled actuator designed for modulating applications. This actuator operates on 24 VAC power and utilizes multi-function technology for efficient performance. It provides a torque of 45 in-lb, making it suitable for various HVAC control tasks.

• Multi-function technology for versatile applications.
• External push button for manual override.
• Operates within a temperature range of -22°F to 122°F.

Product Highlights

The actuator is designed to work with two-way and three-way characterized control valves, enhancing control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: LRB24-MFT

Technical Specifications

• Power Consumption: 2.5 W Running, 1.2 W Holding
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Fluid: Chilled or hot water up to 60% glycol
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Controllable Flow Range: 75 degrees
