Product Description

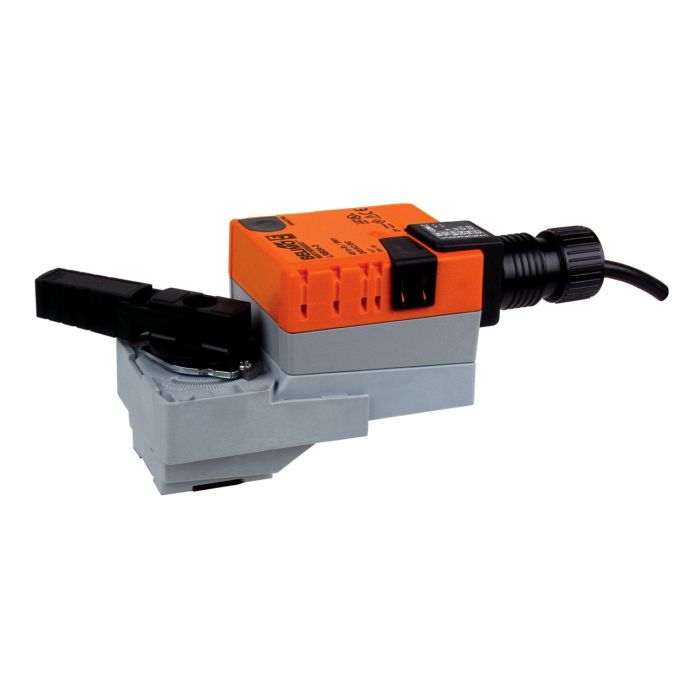

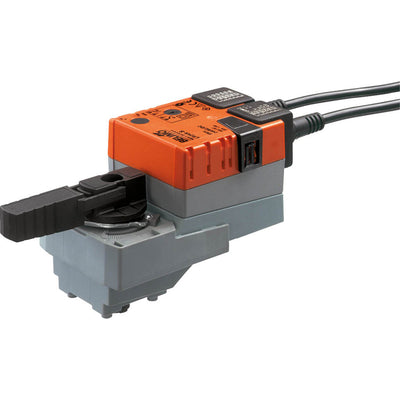

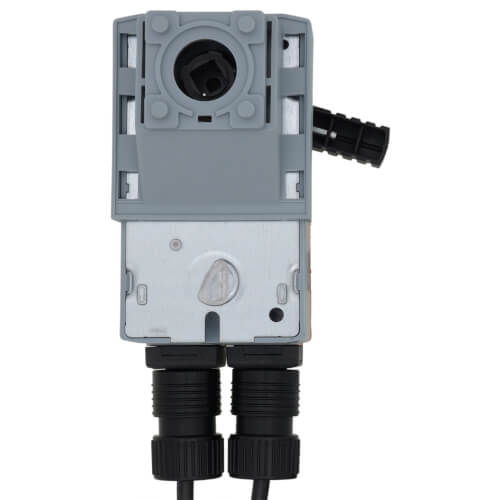

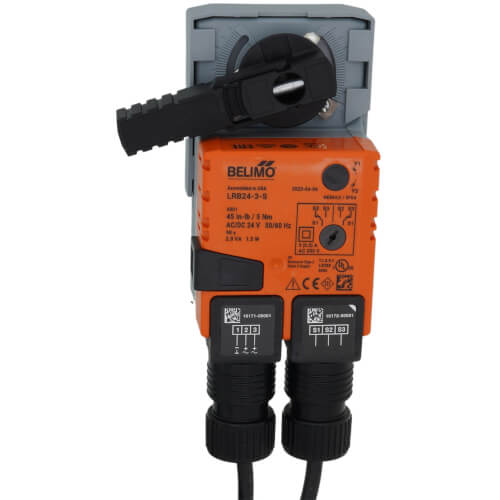

The Belimo LRB24-3-S is a reliable valve actuator designed for precise control in HVAC systems. Its non-spring return mechanism ensures smooth operation across a range of applications, including air handling units and damper controls.
- Efficient 24V operation suitable for on/off and floating point control.
- Comes with an auxiliary switch for enhanced functionality.
- Robust design with a torque of 45 lb-in and a manual override option.
Product Highlights
This actuator is engineered for easy installation and maintenance, featuring a compact design with internal threading for secure attachments.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: LRB24-3-S
Technical Specifications
-
Actuator Type: Non fail-safe
-
Angle of Rotation: 90 degrees
-
Auxiliary Switches: 1 x SPDT
-
Control Type: Floating/3-point
-
-
Fluid Handling: Potable water
-
Manual Override: External push button
-
Pattern: 2-way
-
Valve Size: 0.75 inches
-
Voltage: AC/DC 24V
-
Power Consumption: 1.5 W (running), 0.2 W (holding)
-
Protection Class: IP54, NEMA 2, UL Enclosure Type 2
