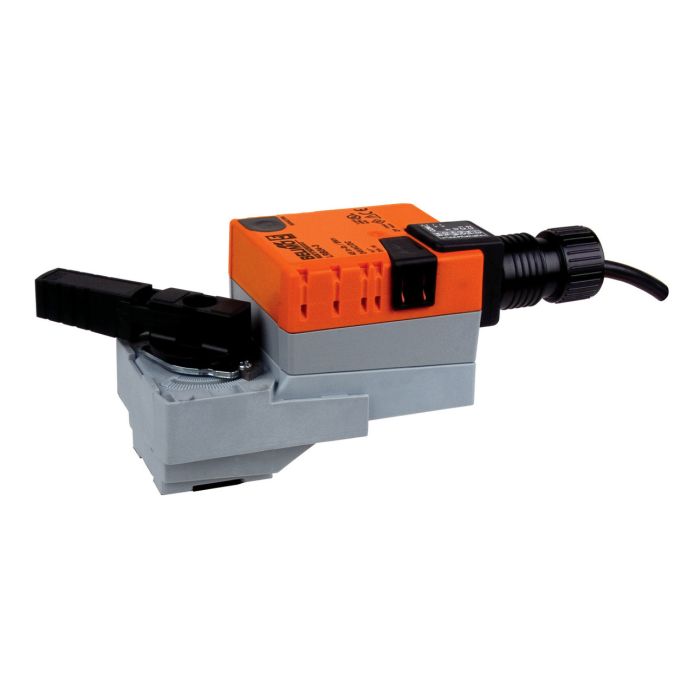

Belimo LRB120-3 Direct Coupled Actuator 45 in-lb

Product Description

The Belimo LRB120-3 Direct Coupled Actuator is a reliable choice designed for HVAC systems. It operates on a voltage range of one hundred to two hundred forty VAC and offers on/off and floating point control features. This actuator is commonly used in air handling units and fan coil units for heating or cooling applications.

• Power supply: 100 to 240 VAC
• Torque rating: 45 in-lb
• External push button manual override

Product Highlights

This actuator is suitable for applications like unit ventilators, VAV box reheat coils, and bypass loops. Its robust design provides reliable operation in hydronic systems with variable flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: LRB120-3
• Min Order Quantity: 1

Technical Specifications

• Power Consumption: 2 W Running, 0.5 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable with 1/2 in. Conduit Connector
• Protection Category: IP42
• Enclosure Type: NEMA 2
• Angle of Rotation: 90 degrees
