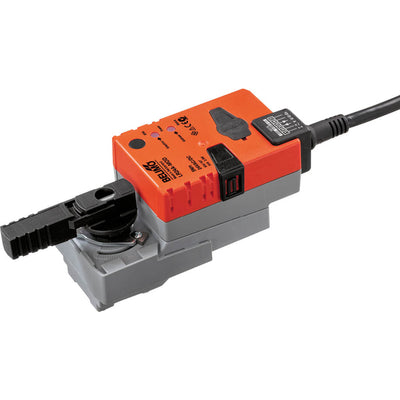

Belimo LR24A-MOD Rotary Actuator 45in-lb [5Nm] AC/DC 24V BACnet MS/TP Modbus RTU MP-Bus

Product Description

The Belimo LR24A-MOD rotary actuator offers reliable control for ball valves. This unit operates with a torque rating of 5 Nm and is designed for both AC and DC applications at twenty-four volts. It utilizes advanced communication protocols including BACnet MS/TP, Modbus RTU, and MP-Bus, allowing integration into various building management systems.

• Torque: 5 Nm for effective valve control
• Voltage: Operates on AC/DC 24V
• Multiple communication protocols for seamless integration

Product Highlights

This unit is ideal for HVAC professionals looking for an actuator that communicates effectively with control systems and supports hybrid messages.

Product Information

Standard Information

• Brand: Belimo
• MPN: LR24A-MOD

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 V, DC 0.5...10 V, Hybrid
• Degree of Protection: IP54
• Electrical Connection: Cable
• Manual Override: With push-button can be locked
• Power Consumption (Holding): 1.3 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 90s
• Torque: 45in-lb [5Nm]
• Voltage AC/DC: AC/DC 24V
