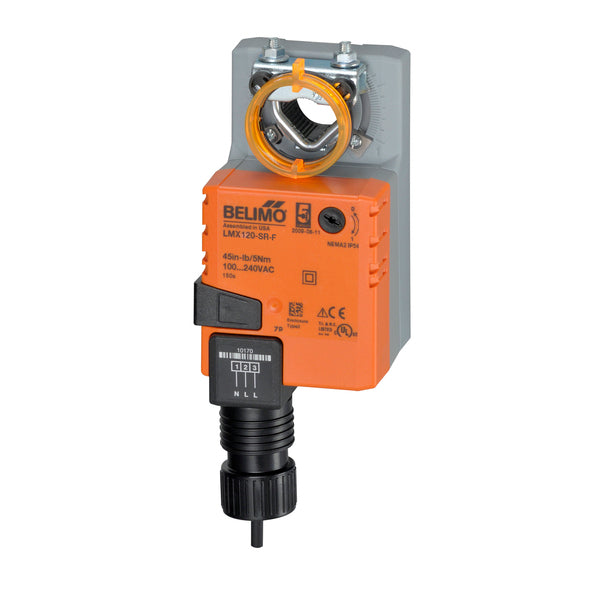

Belimo LMX120-SR-F Damper Actuator 45 in-lb Non-Spg Rtn 100 to 240V Modulating

Product Description

The Belimo LMX120-SR-F is a damper actuator designed for precise control in HVAC systems. This actuator provides a torque of forty-five inch-pounds and operates within a voltage range of one hundred to two hundred forty volts. It features a non-fail-safe design suitable for various installation environments.

• Torque: 45 in-lb (5 Nm)
• Voltage range: AC 100 to 240V
• Control Type: DC 2...10V

Product Highlights

This actuator is suitable for applications requiring efficient airflow control and energy savings.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMX120-SR-F

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Manual Override: External push button
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 95 seconds / 90 degrees
• Running Time Range (Motor): 354560 150 seconds
• Safety Function: NO
