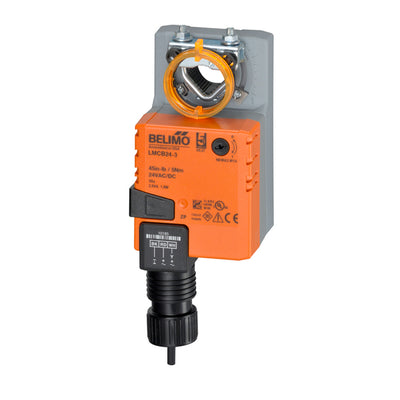

Belimo LMCB24-3 Damper Actuator 24V Non-Spring Return Floating Point

Product Description

Designed for precision and durability, the Belimo LMCB24-3 Damper Actuator provides reliable on/off and floating-point control of dampers within HVAC systems. This direct-coupled, non-spring return actuator operates at 24V, offering robust performance in varying environmental conditions. Ideal for installations requiring 45 in-lb torque without the need for spring return functionality.

• Non-fail-safe design ensuring continuous operation.
• Intuitive manual override via external push button for operational flexibility.
• Efficient power consumption with advanced sensorless Brushless DC motor technology.

Product Highlights

The actuator is an excellent choice for direct mounting to damper shafts ranging from a quarter inch to five-eighths of an inch, providing a visual position indicator and 95 degrees of rotation. Engineered to prevent overload with electronic protection and no requirement for limit switches.

Product Information

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Control Type: Floating/3-point
• Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 35 seconds / 90°
• Safety Function: NO
• Torque: 45 in-lb [5 Nm]
• Voltage AC/DC: AC/DC 24 V
