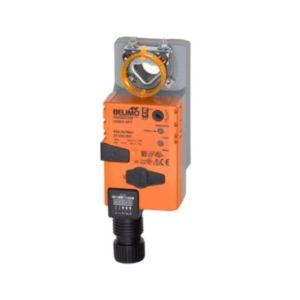

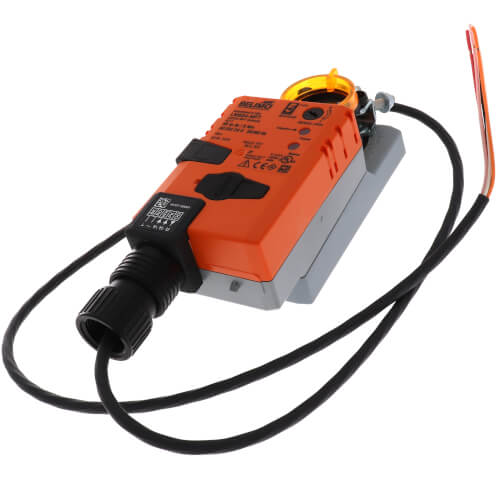

Belimo LMB24-MFT Direct Coupled Actuator 45 in-lb Non-Spring Return 24V

Product Description

The Belimo LMB24-MFT is a direct coupled actuator with a torque rating of forty-five inch-pounds. It operates on twenty-four volts and features a non-spring return mechanism. This actuator is designed for proportional modulation of dampers in HVAC systems.

• Uses sensorless brushless DC motor controlled by ASIC technology.
• Features electronic overload protection.
• Anti-rotation strap prevents lateral movement.

Product Highlights

This actuator provides reliable performance for various HVAC applications, ensuring efficient operation while reducing power consumption during holding mode.

Product Information

Standard Information

• Brand: Belimo
• Part Number: LMB24-MFT

Technical Specifications

• Actuator Type: Non fail-safe
• Torque: 45 in-lb (5 Nm)
• Power Supply: 24 VAC/DC
• Power Consumption: 2.5 W running, 1.2 W holding
• Running Time (Motor): 95 seconds
• Electrical Connection: NEMA 2, IP54 rated cable
• Dimensions: 10.2 inches (length), 5.1 inches (width), 3.1 inches (height)
• Operating Temperature Range: -22°F to 122°F
