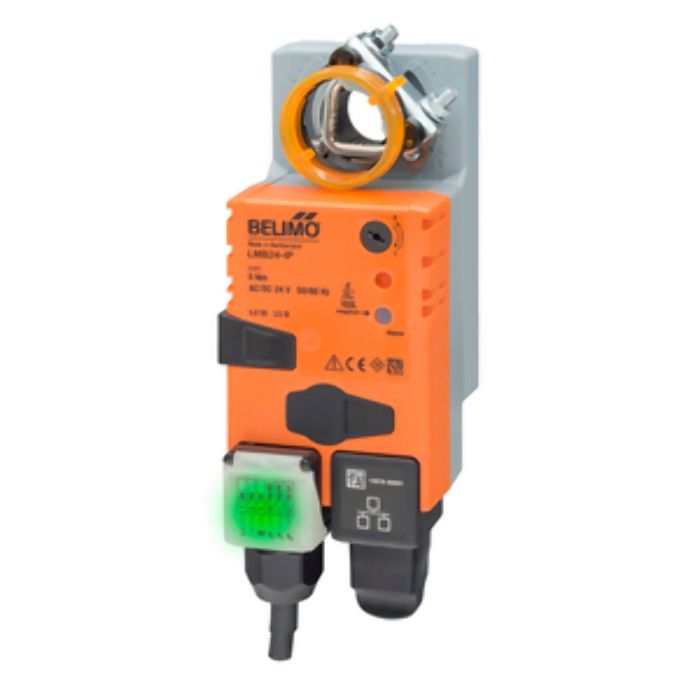

Belimo LMB24-IP Damper Actuator, 45 in-lb, Non-Failsafe

Product Description

The BELIMO LMB24-IP is a damper actuator with 45 in-lb torque and non-failsafe operation. It operates on 24 VAC and consumes 4.5 VA. This actuator supports communicative control via BACnet/IP, Modbus TCP, and Ethernet to the Belimo Cloud. It features conversion of sensor signals and an integrated web server.

• Conversion Of Sensor Signals
• Ethernet 10/100 Mbit/s, TCP/IP, Integrated Web Server
• Communicative Control Via BACnet/IP, Modbus TCP, And Ethernet To Belimo Cloud

Product Highlights

The LMB24-IP damper actuator is designed for modulating control and supports cloud connectivity and various communication protocols.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: LMB24-IP
• Country of Origin: United States

Technical Specifications

• Power Consumption: 3 W Running, 2 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: For Power And Control= 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector. For Communication= RJ245 Socket With Boot
• Housing: NEMA 1
• Item Number: LMB24-IP
• Brand: BELIMO
• Actuator Type: Damper (TCP/IP)
• Control Input: Modulating
• Spring Return: Non-Spring Return
• Torque: 45 in-lb
• Voltage: 24V
• MPN: LMB24-IP
