Belimo Lmb24-3-t.1 Damper Actuator 45 in-lb Non-spg rtn 24v On/off/floating point 36 Pack

Product Description

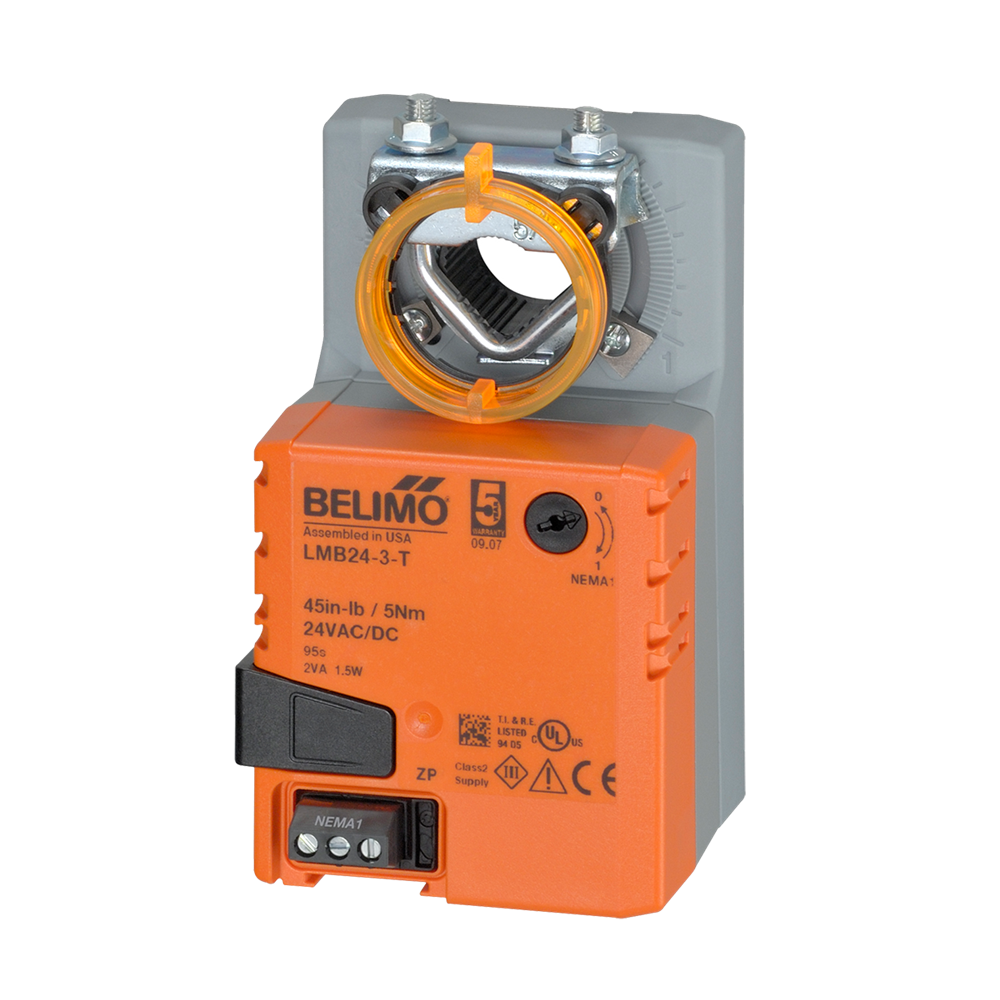

The BELIMO LMB24-3-T.1 damper actuator is designed for on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter. The LMB series provides 95° of rotation and a visual indicator which indicates position of the actuator.

• Manual override for testing and verification
• Reversing switch for control flexibility
• CSA and CE approved for worldwide application

Product Highlights

The Belimo LMB24-3-T.1 offers precise damper control for HVAC systems, featuring a manual override and a reversing switch for flexible operation.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: LMB24-3-T.1

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95
• Control Type: Floating/3-point
• Degree of Protection: IP20 NEMA 1 UL Enclosure Type 1
• Electrical Connection: terminals
• Manual Override: External push button
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 95 s / 90B0
• Safety Function: NO
• Torque: 45 in-lb [5 Nm]
• Voltage AC/DC: AC/DC 24 V
• Options: Terminal Block
• Runtime: 95 Secs
• Version: Basic
• Voltage: 24vdc
• Aux. Switch: None
• Nema Rating: Nema 2
• Spring Return: Non-Spring Return
• Communications: None
• Supply Va: 2.5 VA
• Supply Voltage (Nominal): 24 VAC
• Control Signal: Two Position,Floating
• Supply Voltage: 24 VAC 20% 50/60 Hz, 24 VDC 10%, 100 VAC, 240 VAC
• Motor: Brushless DC
• Wiring: 3' (0.9 m) plenum cable, 18 AWG, terminals
• Action: Non-spring return
• Rotation: 95 degrees, Rev. with switch
• Noise: <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
• Resolution: 100 steps
• Life Expectancy: 100,000 cycles, 1 million repositions
• Operating Temperature: -22 to 122 F (-30 to 50 C)
• Operating Humidity: 5 to 95% RH
• Approvals: UL94-5VA
