Product Description

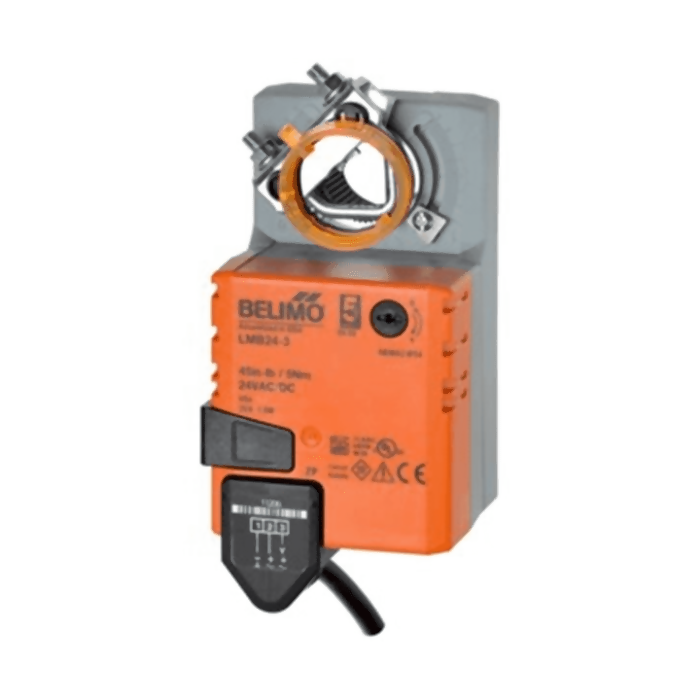

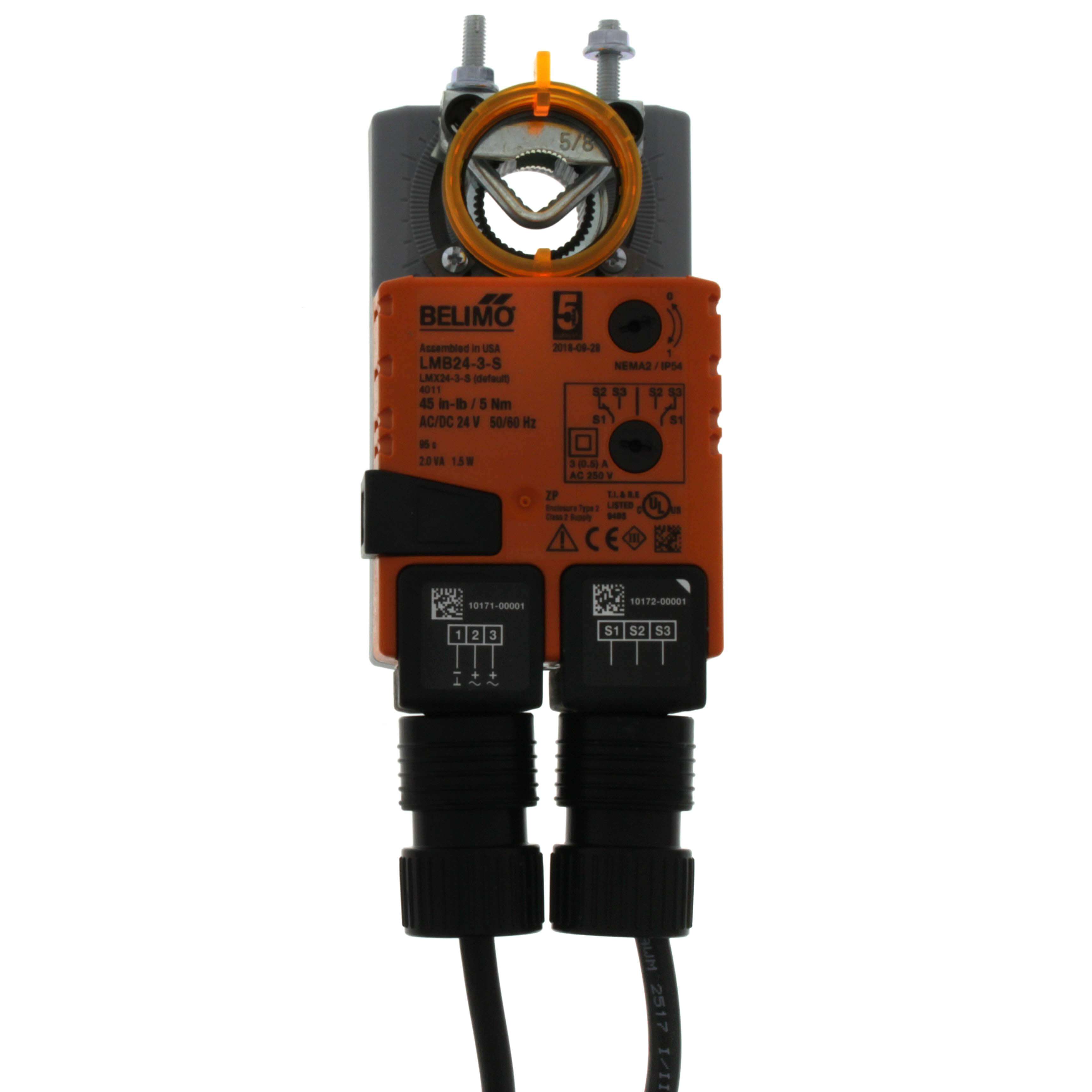

The Belimo LMB24-3-S Damper Actuator offers reliable control of dampers in HVAC systems. Its robust design ensures consistent performance without the need for regular maintenance.

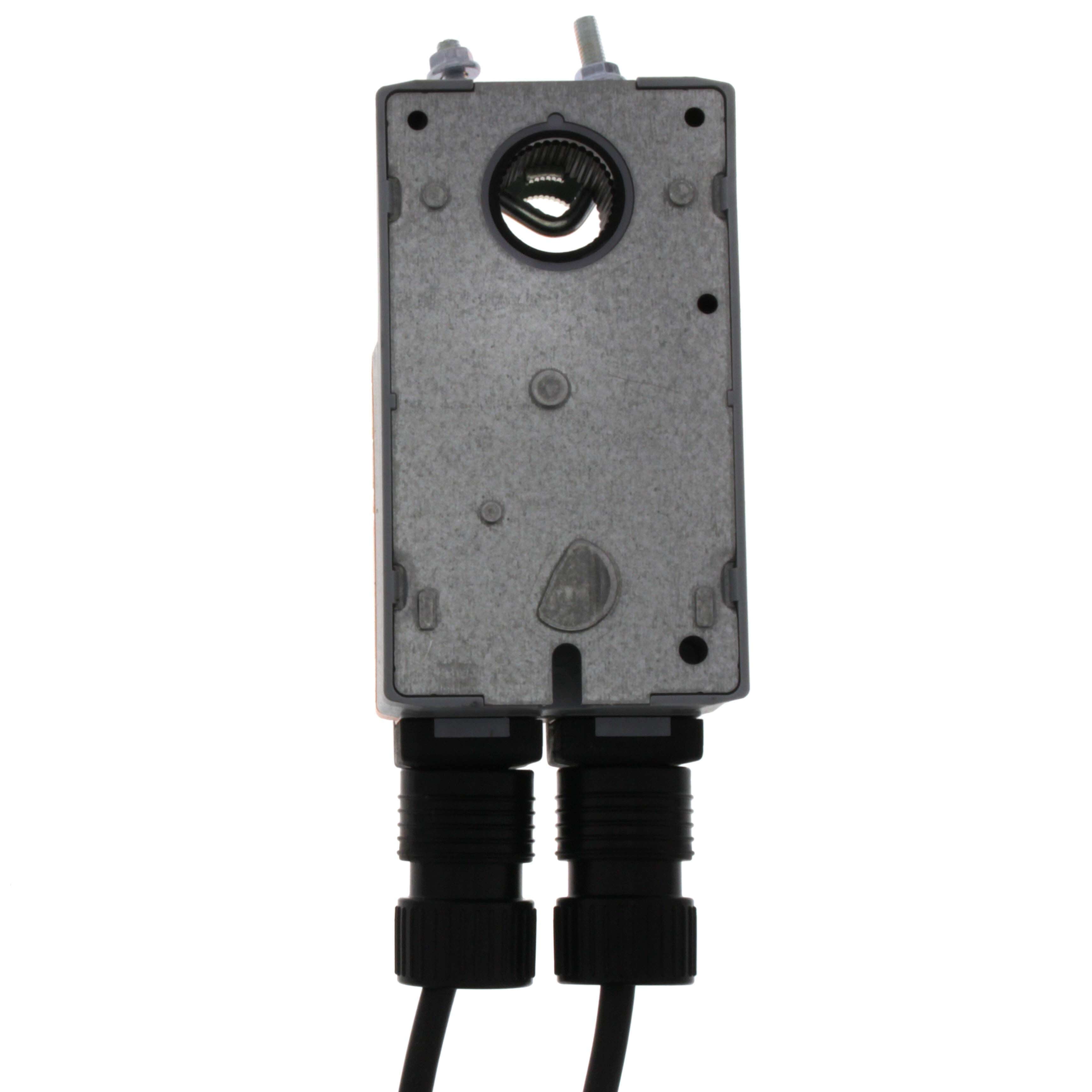

- Designed for direct mounting to damper shafts from a quarter inch up to five eighths inch in diameter.
- Features sensorless brushless DC motor technology controlled by an Application Specific Integrated Circuit (ASIC).
- Includes a built-in SPDT auxiliary switch for safety interfacing or signaling.
Product Highlights
This actuator is perfect for on/off and floating point control of HVAC system dampers. It does not require limit switches and is electronically protected against overload.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: LMB24-3-S
Technical Specifications
-
Torque: 45 in-lb (5 Nm)
-
Angle of Rotation: 95 degrees
-
Control Type: Floating/3-point
-
Voltage: AC/DC 24 V
-

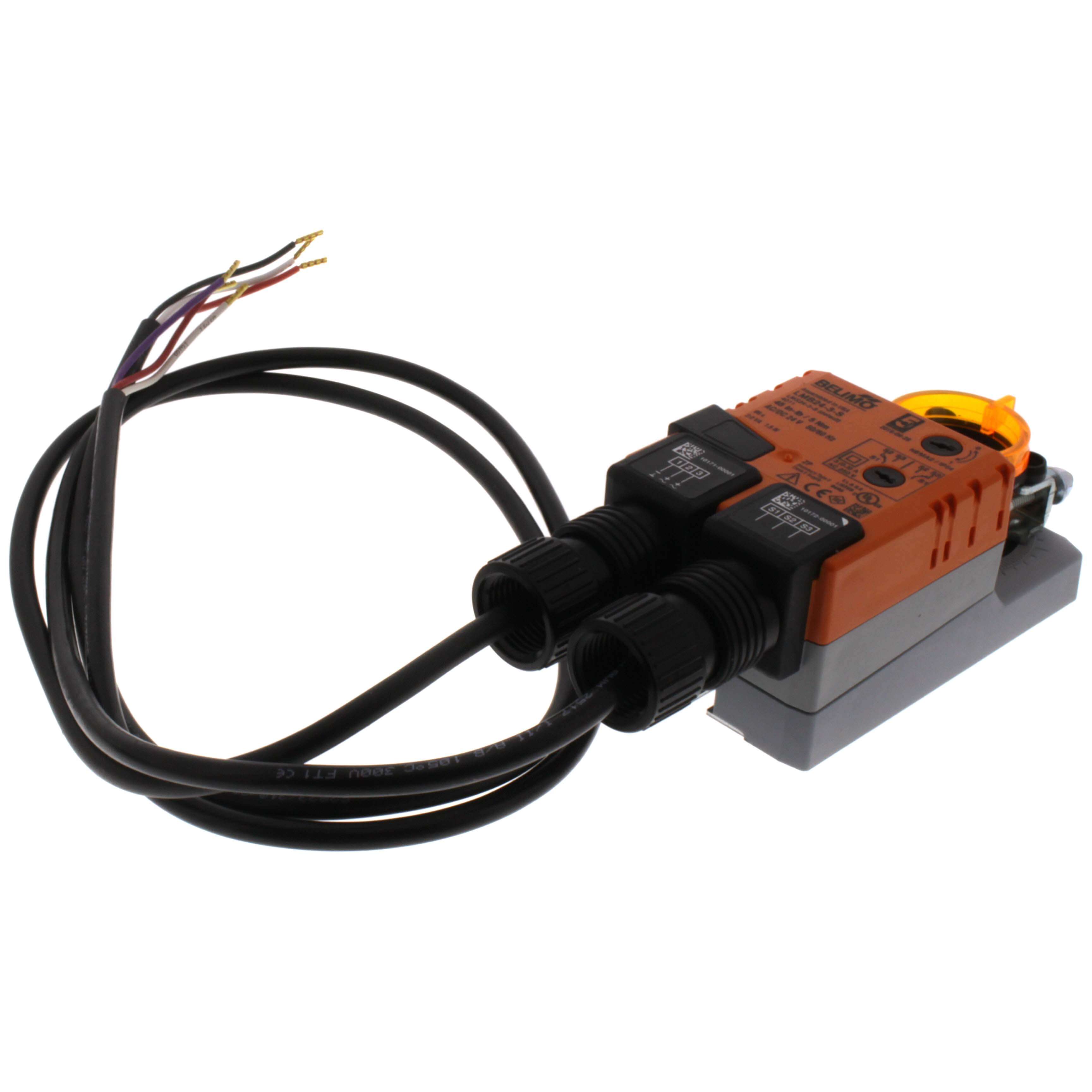

Electrical Connection: Cable
-
Power Consumption (Holding): 0.2 W
-
Power Consumption (Running): 1.5 W
-
Manual Override: External push button
