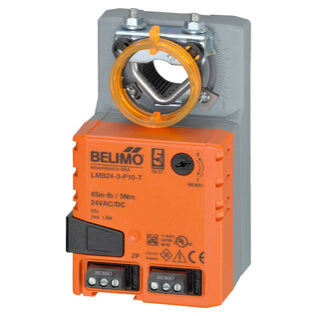

Belimo LMB24-3-P5-T Direct Coupled Actuator 45 in-lb Non-Spring Return 24V

Product Description

The Belimo LMB24-3-P5-T is a direct coupled actuator with a torque of 45 in-lb designed for On/Off and floating point control in HVAC systems. This actuator operates on a voltage of twenty-four volts alternating current or direct current. It features a brushless DC motor for improved efficiency and precise control.

• Power consumption: 1.5 watts running, 0.2 watts holding
• Operating temperature range: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Standard electrical connection with plenum rated cable and conduit connector

Product Highlights

This model is ideal for managing dampers efficiently. Its electronic overload protection and anti-rotation strap support reliable operation and installation ease.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMB24-3-P5-T

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Control Type: Floating/3-point
• Degree of Protection: IP20 NEMA1 UL Enclosure Type 1
• Electrical Connection: Terminals
• Manual Override: External push button
• Running Time (Motor): 95 seconds
• Torque: 45 in-lb [5 Nm]
• Voltage AC/DC: AC/DC 24V
