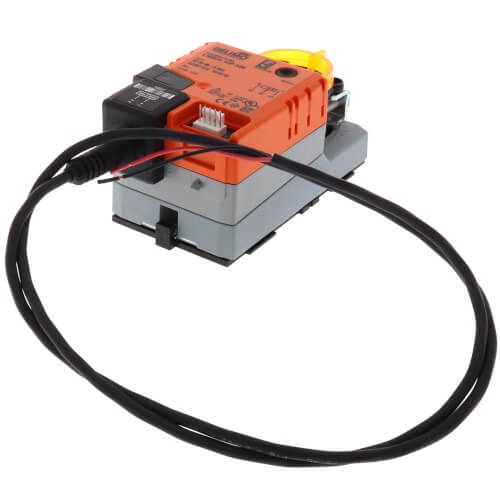

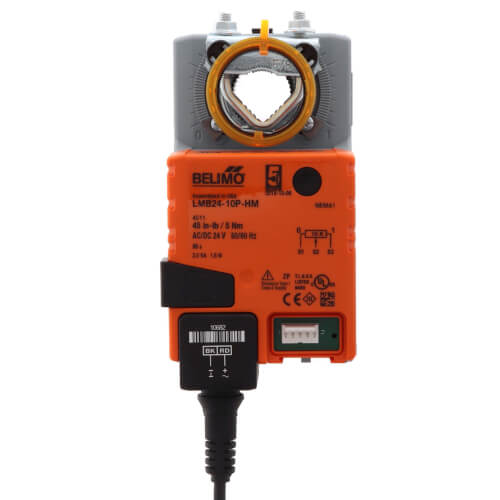

BELIMO LMB24-10P-HM Damper Actuator 24V Modulating Non-Spring Return

Product Description

Belimo LMB24-10P-HM is a non-spring return damper actuator designed for 24V systems. It offers 45 inch-pounds of torque and modulating control, making it ideal for variable air volume (VAV) applications.

• Designed for easy retrofitting of existing VAV systems
• Features external push button manual override
• Low power consumption in holding mode

Product Highlights

This actuator provides quick installation without system rebalancing, increasing its efficiency and reducing downtime. It comes equipped with a brushless motor technology to ensure reliable performance and durability. The standard universal clamp allows direct mounting to the damper shaft, simplifying the integration process.

Product Information

Standard Information

• Brand: Belimo
• Model: LMB24-10P-HM

Technical Specifications

• Torque: 45 in-lb [5 Nm]
• Control Type: Modulating
• Voltage: AC/DC 24 V
• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Manual Override: External push button
• Electrical Connection: Cable
• Power Consumption: Running: 1.5 W, Holding: 0.2 W
