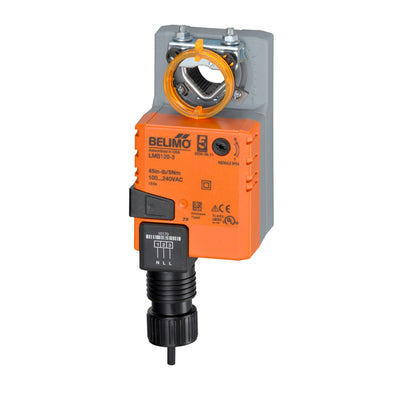

Belimo LMB120-3 Damper Actuator Non Fail-Safe AC100-240V On/Off Floating Point

Product Description

The Belimo LMB120-3 is a robust damper actuator designed for precise control of dampers in HVAC systems. This actuator is perfect for applications requiring non fail-safe, on/off, and floating point controls within a voltage range of AC 100 to 240 volts.

• Efficient operation with a torque of 45 inch-lbs.
• Adjustable auxiliary switches for safety interfacing.
• Electronically protected against overload.

Product Highlights

The LMB120-3 features a rotation of 95 degrees and a manual override with an external push button. It includes an IP54-rated protection against dust and splashing water, ensuring durability in diverse environments.

Product Information

Standard Information

• Actuator Type: Non fail-safe
• Control Type: Floating/3-point

Technical Specifications

• Torque: 45in-lb [5Nm]
• Voltage AC/DC: AC100...240V
• Manual Override: External push button
• Safety Function: NO
• Angle of Rotation: 95
• Degree of Protection: IP54 NEMA2 ULEnclosureType2
• Running Time (Motor): 95s / 90B0
• Electrical Connection: cable
• Power Consumption (Running): 1.5 W
• Power Consumption (Holding): 0.2 W
