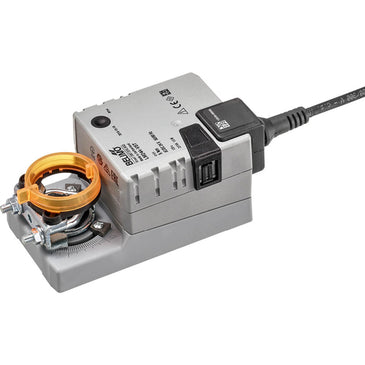

Belimo LM24A-VST Rotary Actuator for VRU 45in-lb [5Nm] AC/DC24V

Product Description

The Belimo LM24A-VST is a rotary actuator designed for variable air volume control. It provides a torque of 45 inches-pound, equivalent to 5 Newton-meters, and operates on AC/DC 24 volts. This actuator features a running time of one hundred twenty seconds and meets IP54 standards for dust and water resistance.

• Max Torque: 45 in-lb [5 Nm]
• Voltage: AC/DC 24V
• Running Time: 120 seconds

Product Highlights

The Belimo LM24A-VST rotary actuator is suitable for various HVAC applications. It enhances ventilation control in systems designed for energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: LM24A-VST

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Control Type: Modulating
• Direction of Rotation (Motor): Adjustable through wiring
• Electrical Connection: cable
• Manual Override: With push-button can be locked
• Mechanical Interface: Universal shaft clamp 6 to 20 mm
• Power Consumption (Holding): 0.4 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 120 seconds / 90 degrees
• Torque: 45 in-lb [5 Nm]
• Voltage AC/DC: AC/DC 24 V
