Product Description

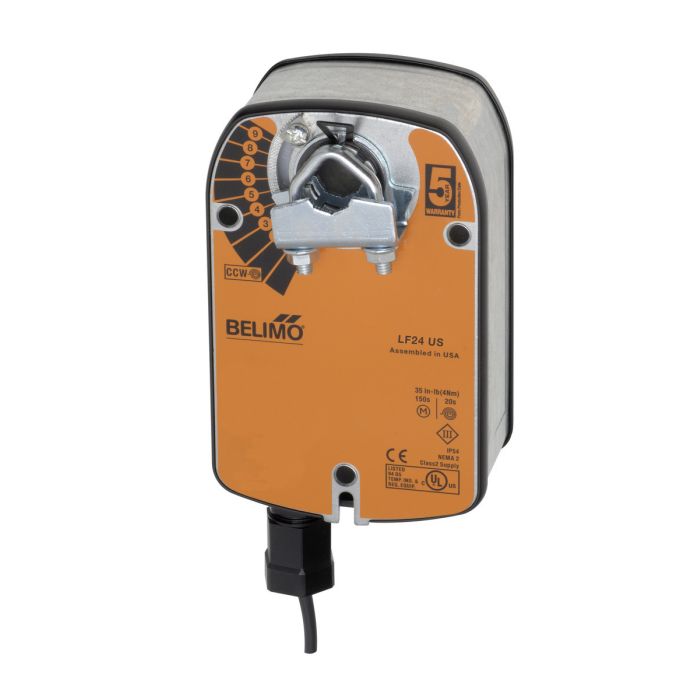

The Belimo LF24-MFT-S US is a damper actuator designed for fail-safe, modulating control of dampers in HVAC systems. It operates on twenty-four volts and delivers thirty-five inch-pounds of torque. The actuator accommodates various applications, ensuring optimal performance as specified by the damper manufacturer.
- Spring return actuator for reliable operation
- Compatible with control shafts up to three-fourths inch diameter
- Utilizes a brushless DC motor for efficiency
Product Highlights
This actuator features a graduated position indicator that shows rotation from zero to ninety degrees and uses Digital Rotation Sensing for precise control.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: LF24-MFT-S US
Technical Specifications
-
Power Supply: AC/DC 24V
-
Torque: 35 in-lb
-
Angle of Rotation: 90 degrees
-
Auxiliary Switches: 1 x SPDT
-
Degree of Protection: IP54 NEMA 2
-
Power Consumption (Holding): 1 W
-
Power Consumption (Running): 2.5 W
-
Running Time (Fail-safe): < 25 seconds
-
Running Time (Motor): 150 seconds / 90 degrees
-
Fluid Compatibility: Chilled or hot water up to 60% glycol steam
-
Connection Type: Cable
-
End Fitting: Internal thread
-
Trim Material: Stainless steel
