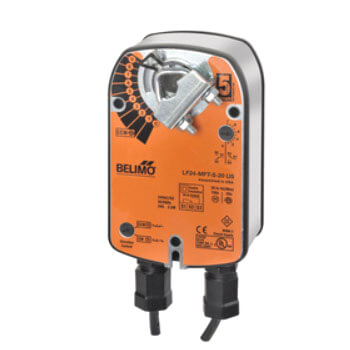

Belimo LF24-MFT-S-20 Damper Actuator 35 in-lb Spring Return 24V Modulating

Product Description

The Belimo LF24-MFT-S-20 Damper Actuator is designed for managing the airflow in HVAC systems. This actuator offers 35 in-lb torque and features a spring return for reliable fail-safe operation. It operates on 24V and supports modulating control.

• Spring return actuator for fail-safe operation
• Provides 35 in-lb torque
• Modulating control with 24V input

Product Highlights

The LF24-MFT-S-20 is ideal for controlling dampers in HVAC systems. It features a spring return mechanism for reliable performance and easy installation. The actuator supports MFT/programmable control, making it versatile for various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: LF24-MFT-S-20

Technical Specifications

• Torque: 35 in-lb
• Voltage AC/DC: 24V
• Power Consumption (Running): 3 W
• Power Consumption (Holding): 1.5 W
• Running Time (Motor): 150 s
• Running Time (Fail-safe): less than 25 s
• Control Type: MFT/Programmable
• Angle of Rotation: 95 degrees
• Auxiliary Switches: 1 x SPDT
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
