Belimo GMX24-SR Direct Coupled Actuator 360 in-lb

Product Description

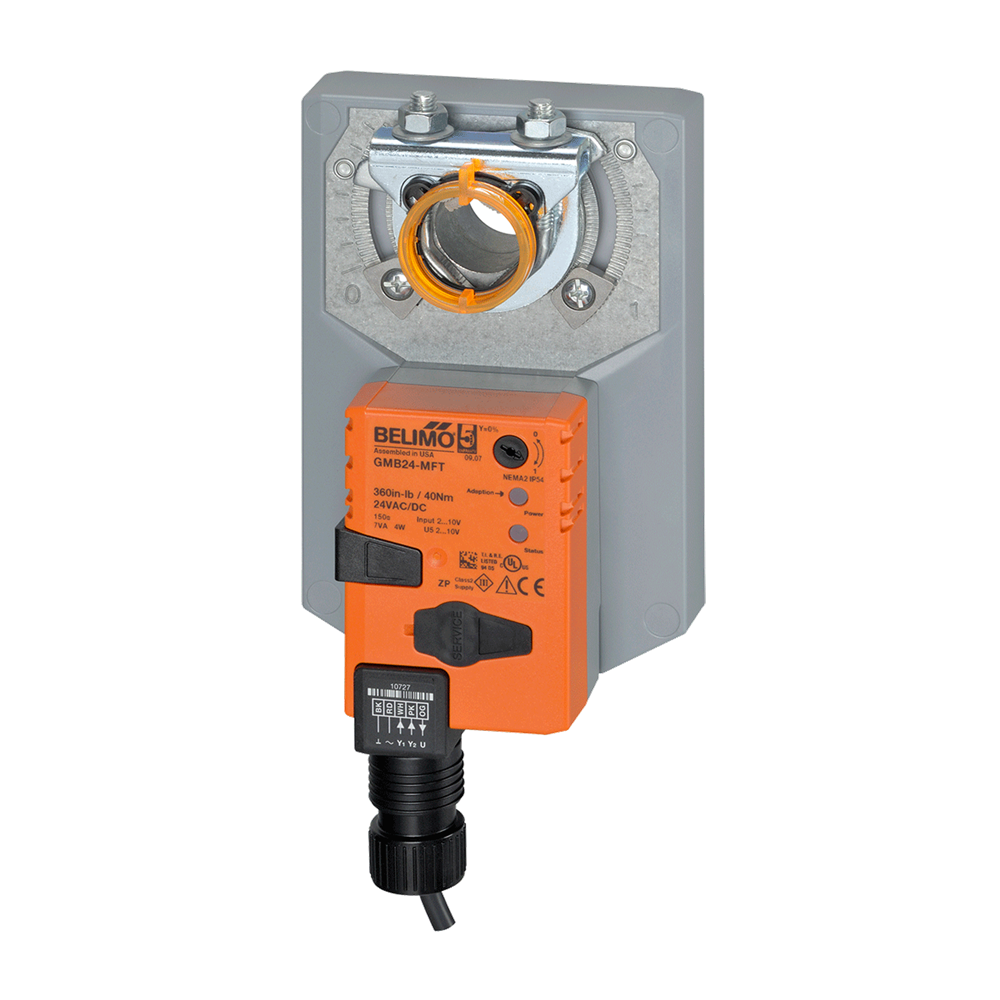

The BELIMO GMX24-SR is a direct coupled actuator with 360 in-lb torque. It is designed for proportional modulation of dampers in HVAC systems. The actuator mounts directly to a damper shaft up to 1.05" in diameter. It operates in response to 0 to 20V phasecut control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication.

• Actuator Is Electronically Protected Against Overload
• Uses A Brushless DC Motor Which Is Controlled By An Application Specific Integrated Circuit (ASIC)
• The Anti-Rotation Strap Supplied With The Actuator Will Prevent Lateral Movement

Product Highlights

The Belimo GMX24-SR actuator is for HVAC damper systems, featuring electronic overload protection and reduced power consumption in holding mode.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: GMX24-SR
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54
• Power Consumption: 4.5 W Running, 2 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 10 ft. Or 16 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector
• Actuator Type: Non fail-safe
• Angle of Rotation: 95
• Control Type: DC 2...10 V
• Manual Override: External push button
• Running Time (Motor): 150 s / 90B0
• Safety Function: NO
• Torque: 360 in-lb [40 Nm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 150 Secs
• Voltage: 24vdc
• Nema Rating: Nema 2
• Spring Return: Non-Spring Return
• Supply Va: 6.5 VA
• Power Supply: 24 VAC,24 VDC
• Humidity: 5 to 95% RH non condensing (EN 60730-1)
• Input Impedance: 100 k
