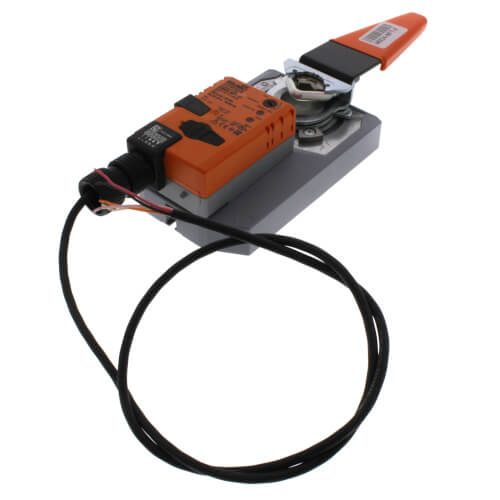

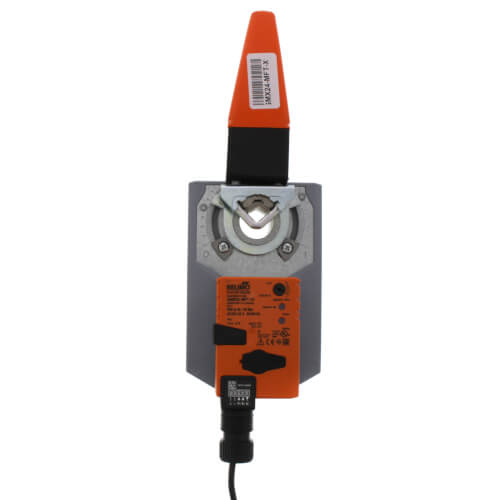

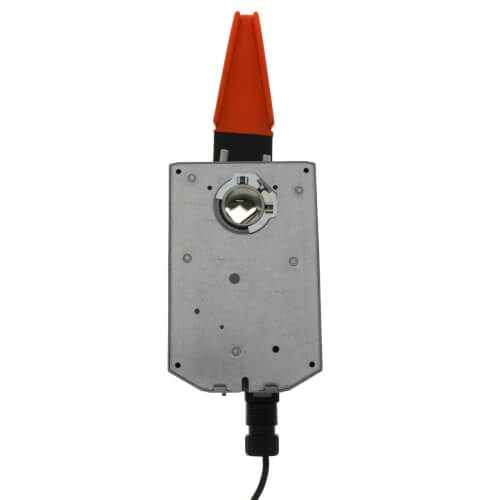

Belimo GMB24-MFT-X1 Valve Actuator 24V Non-Spring MFT

Product Description

The Belimo GMB24-MFT-X1 is a non-spring return valve actuator designed for proportional modulation of dampers in HVAC systems. It effectively responds to control inputs ranging from 2 to 10 VDC and, with an additional 500 ohm resistor, can handle 4 to 20 mA inputs.

• Provides 360 in-lb of torque for reliable performance.
• Featuring IP54 protection, suitable for demanding environments.
• Equipped with MFT for versatile programming.

Product Highlights

This actuator is built for direct shaft mounting up to 1.05 inches diameter, ensuring easy installation and compatibility with various damper types. It offers a controllable flow range and is equipped with multiple wiring options for flexible setup.

Product Information

Standard Information

• Actuator Type: Non-fail-safe
• Control Type: MFT/Programmable

Technical Specifications

• Power Supply: 24V AC/DC
• Running Time (Motor): 150 seconds
• Protection: IP54, NEMA 2
• Manual Override: External push button
• Electrical Connection: Cable
• VA Rating: 7
