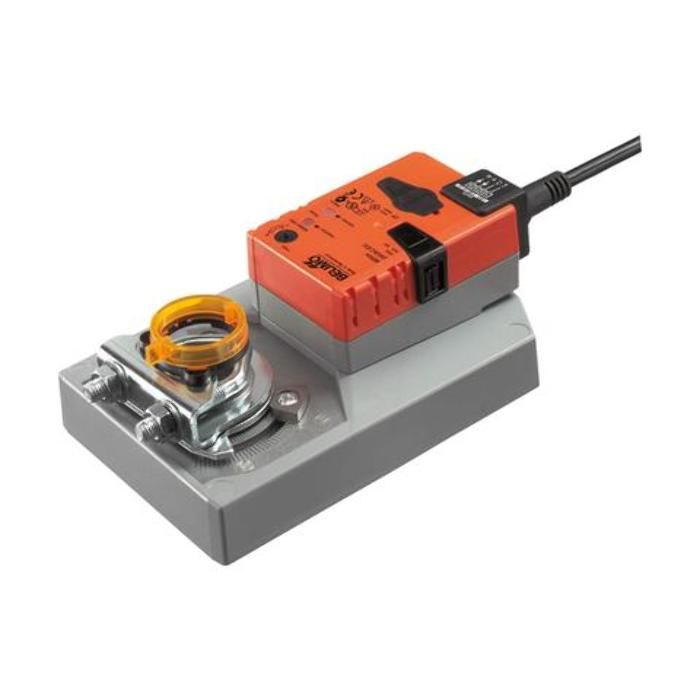

Belimo GM24A-MOD Rotary Damper Actuator 360 in-lb

Product Description

The Belimo GM24A-MOD is a rotary damper actuator designed for use in HVAC control systems. It provides 360 inch-pounds of torque. This actuator is non-fail safe and operates on 24 VAC or DC power. The device accepts signals between 2 to 10 VDC, and is compatible with BACnet MS/TP, Modbus RTU, and MP-Bus communication protocols.

• Torque rating of 360 in-lb for effective damper control
• Various communication protocols for flexibility in installation
• Durable design with IP54 rating

Product Highlights

Ideal for adjusting dampers in technical building installations. The actuator suits air damper sizes up to approximately eight square meters and can convert sensor signals for efficient system integration.

Product Information

Standard Information

• Brand: Belimo
• Part Number: GM24A-MOD

Technical Specifications

• Housing: NEMA 2, IP54
• Power Consumption: 4 W running, 1.6 W holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: Cable
• Angle of Rotation: 95 degrees
• Degree of Protection: IP54
• Manual Override: Push-button lock
• Mechanical Interface: Universal shaft clamp 12 to 26.7 mm
