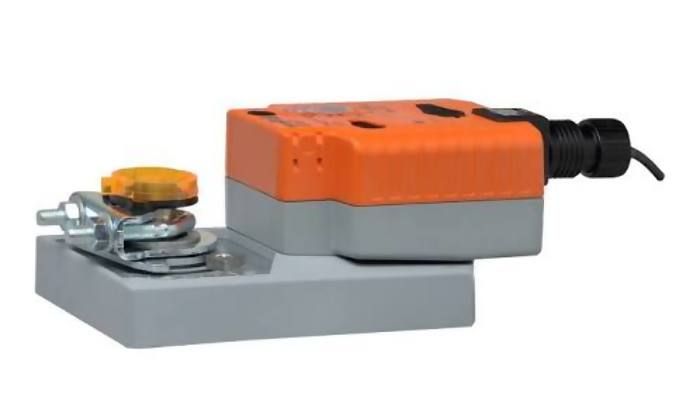

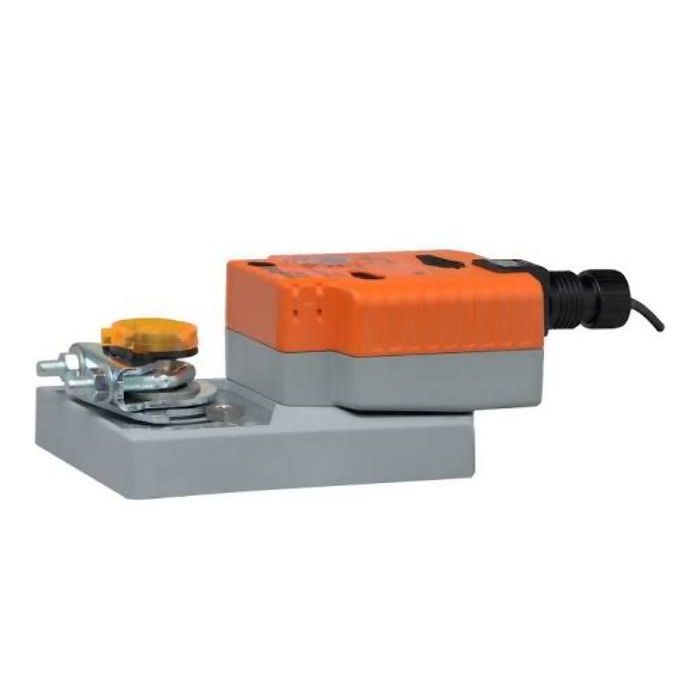

Belimo Gkx24-Mft-X1 Direct Coupled Actuator 360 in-lb

Product Description

The BELIMO GKX24-MFT-X1 is a direct coupled actuator with 360 in-lb torque. It is modulating, electronic fail-safe, and operates at 24 VAC, designed for 2 to 10 VDC or 4 to 20 mA control signals. The actuator is electronically protected against overload and features MFT functionality.

• Actuator is electronically protected against overload
• Uses a brushless DC motor controlled by an application-specific integrated circuit (ASIC)
• Anti-rotation strap prevents lateral movement

Product Highlights

This direct coupled actuator features electronic fail-safe operation and reduced power consumption in holding mode.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: GKX24-MFT-X1
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Power Consumption: 12 W Running, 3 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 10 ft. Or 16 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector, Protected NEMA 2
• Torque: 360 in-lbs
• Options: None
• Runtime: 90-150 Secs
• Version: Custom
• Voltage: 24vdc
• Aux. Switch: 1
• Item Weight: 0.07 lbs per EA
• Nema Rating: Nema 2
• Spring Return: Elec Fail-Safe
• Communications: None
• Power Supply: 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
• Angle of rotation: Max. 95°, adjustable with mechanical stop
• Direction of rotation motor: reversible with built-in switch
• Direction of motion fail-safe: reversible with switch
• Manual override: external push button
• Ambient temperature: -22...122°F
• Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
• Noise level, motor: 52 dB(A)
• Noise level, fail-safe: 61 dB(A)
• Maintenance: maintenance-free
• Weight: 4.0 lb
