Product Description

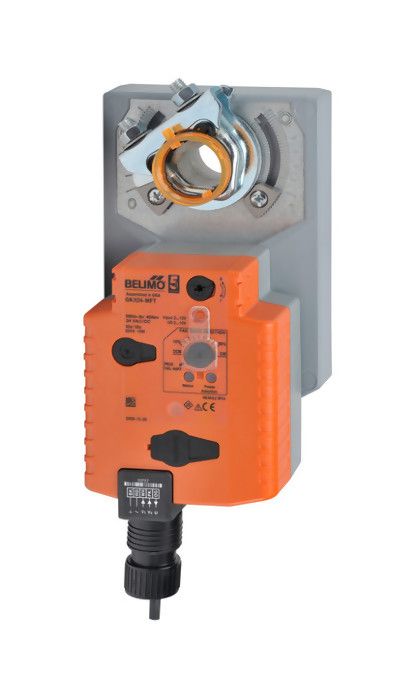

The Belimo GKB24-3 is a damper actuator designed for use in HVAC systems. It offers a torque rating of 360 in-lb and operates at 24 volts. This actuator supports on/off and floating point control, making it suitable for a variety of applications. The actuator is mounted using a universal clamp and can accommodate damper shafts up to one point oh five inches in diameter.
- Torque rating of 360 in-lb for reliable operation.
- Compatible with triacs and relays for on/off or floating point control.
- Brushless DC motor with built-in overload protection.
Product Highlights
This actuator is engineered for fail-safe operation, providing dependable performance in HVAC systems.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: GKB24-3
Technical Specifications
-
Actuator Type: Electrical fail-safe
-
Angle of Rotation: 95
-
Control Type: Floating/3-point
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Direction of Rotation (Fail-Safe): Reversible with switch
-
Electrical Connection: cable
-
Manual Override: External push button
-
Power Consumption (Holding): 3 W
-
Power Consumption (Running): 11 W
-
Running Time (Fail-safe): Less than 35 seconds
-
Running Time (Motor): 150 seconds / 90 degrees
-
Safety Function: Yes
-
Torque: 360 in-lb [40 Nm]
-
Voltage AC/DC: AC 24 V
