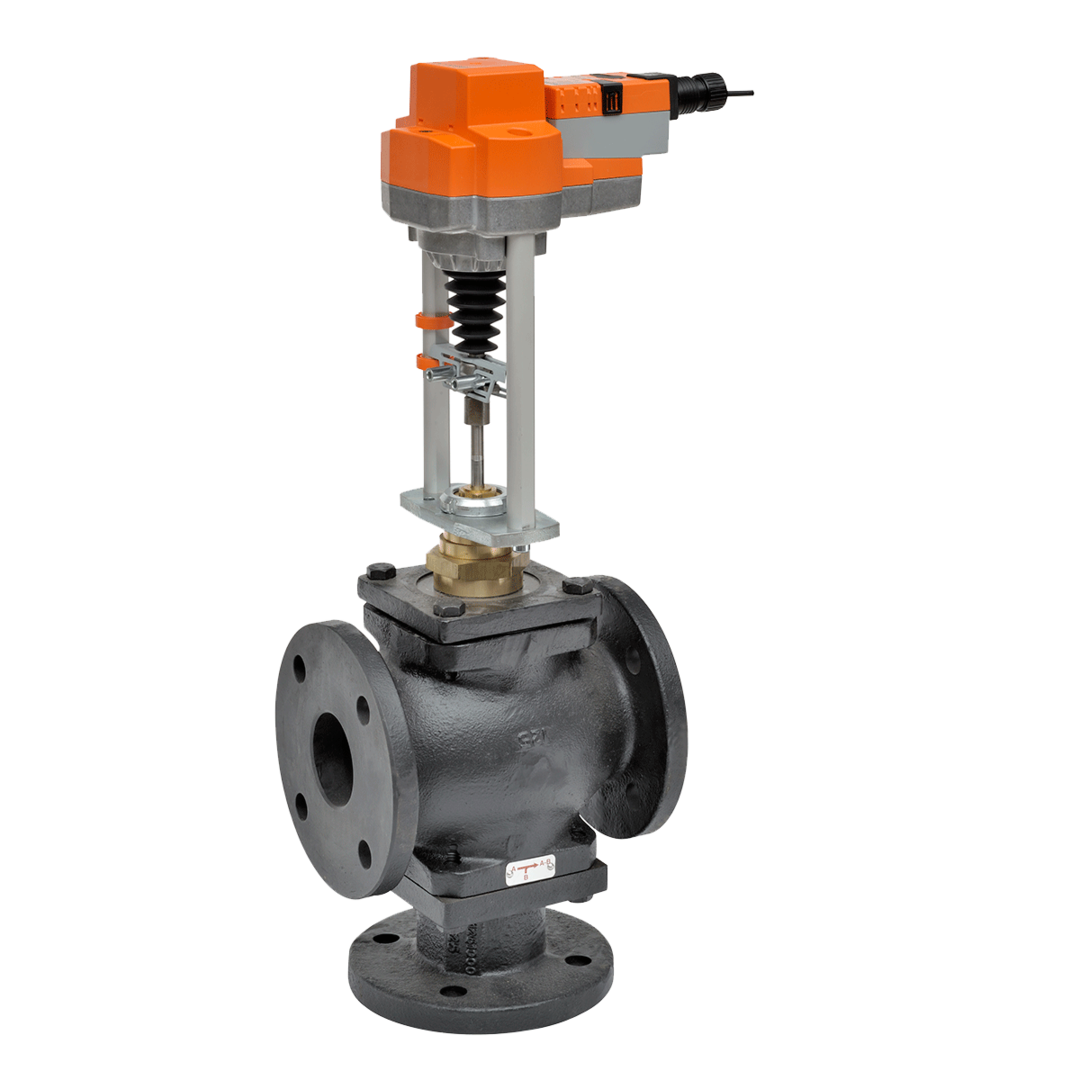

Belimo G780+EVX24-SR Globe Valve 3 Way 85 Cv w/ Non-Spring 24V Modulating

Product Description

The Belimo G780+EVX24-SR is a globe valve designed for efficient control in hydronic systems. It features a 3-way pattern suitable for heating or cooling applications. This valve operates at 24V and has a modulating function for precise flow management.

• 3-way design ideal for large Air Handling Units (AHUs)
• 85 Cv capability for effective fluid control
• Non-spring actuator for reliable operation

Product Highlights

This globe valve is specifically engineered for use in hydronic systems with variable flow, enhancing system efficiency and performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: G780+EVX24-SR

Technical Specifications

• ANSI Class: 125
• Controllable Flow Range: Stem up - open B b AB
• Cv: 85
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 3 [80]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Force: 2500 N [560 lbf]
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90 s
• Stroke: 2 [50 mm]
• Voltage AC/DC: AC/DC 24 V
