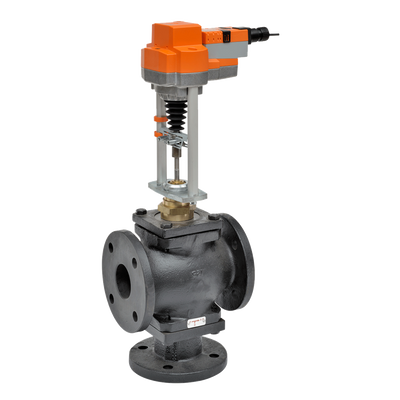

Belimo G765+EVB24-SR Globe Valve 2.5 3 Way 68 Cv w/ Non-Spg 24V 2-10V

Product Description

The Belimo G765+EVB24-SR is a globe valve designed for reliable control in various applications. It has a valve size of two point five inches and features a three-way pattern with a flow coefficient of sixty-eight Cv. This model comes equipped with a non-fail-safe actuator, operating on twenty-four volts and supports a control signal ranging from two to ten volts.

• ANSI class 125 rated
• Ideal for chilled or hot water applications
• Manual override option included

Product Highlights

This globe valve is suitable for a wide range of fluid control needs, making it essential in HVAC systems. It features robust construction for durability and reliable operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: G765+EVB24-SR

Technical Specifications

• ANSI Class: 125
• Controllable Flow Range: Stem up - open B b AB
• Cv: 68
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 2.5 [65]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 2500 N [560 lbf]
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90 s /
• Stroke: 2 [50 mm]
• Voltage AC/DC: AC/DC 24 V
