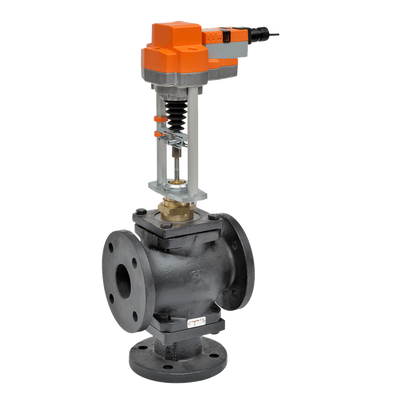

Belimo G7100+RVX24-MFT Globe Valve 4 3 Way 190 Cv Non-Spg 24V MFT

Product Description

The Belimo G7100+RVX24-MFT Globe Valve is a crucial component for large air handling units (AHU) on heating or cooling coils. This globe valve is designed for use in hydronic systems with variable flow.

• Used in large air handling units
• Suitable for hydronic systems
• Handles variable flow efficiently

Product Highlights

This valve is typically used in large air handling units (AHU) on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow.

Product Information

Standard Information

• Brand: Belimo
• Model: G7100+RVX24-MFT
• Type: Globe Valve

Technical Specifications

• ANSI Class: 125
• Close-off Pressure: 68kPa
• Controllable Flow Range: Stem up - open B b AB
• Cv: 190
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 4 [100]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Force: 4500N [1010lbf]
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 6 W
• Running Time (Motor): 90s
• Stroke: 2 [50mm]
• Voltage AC/DC: AC/DC 24V
