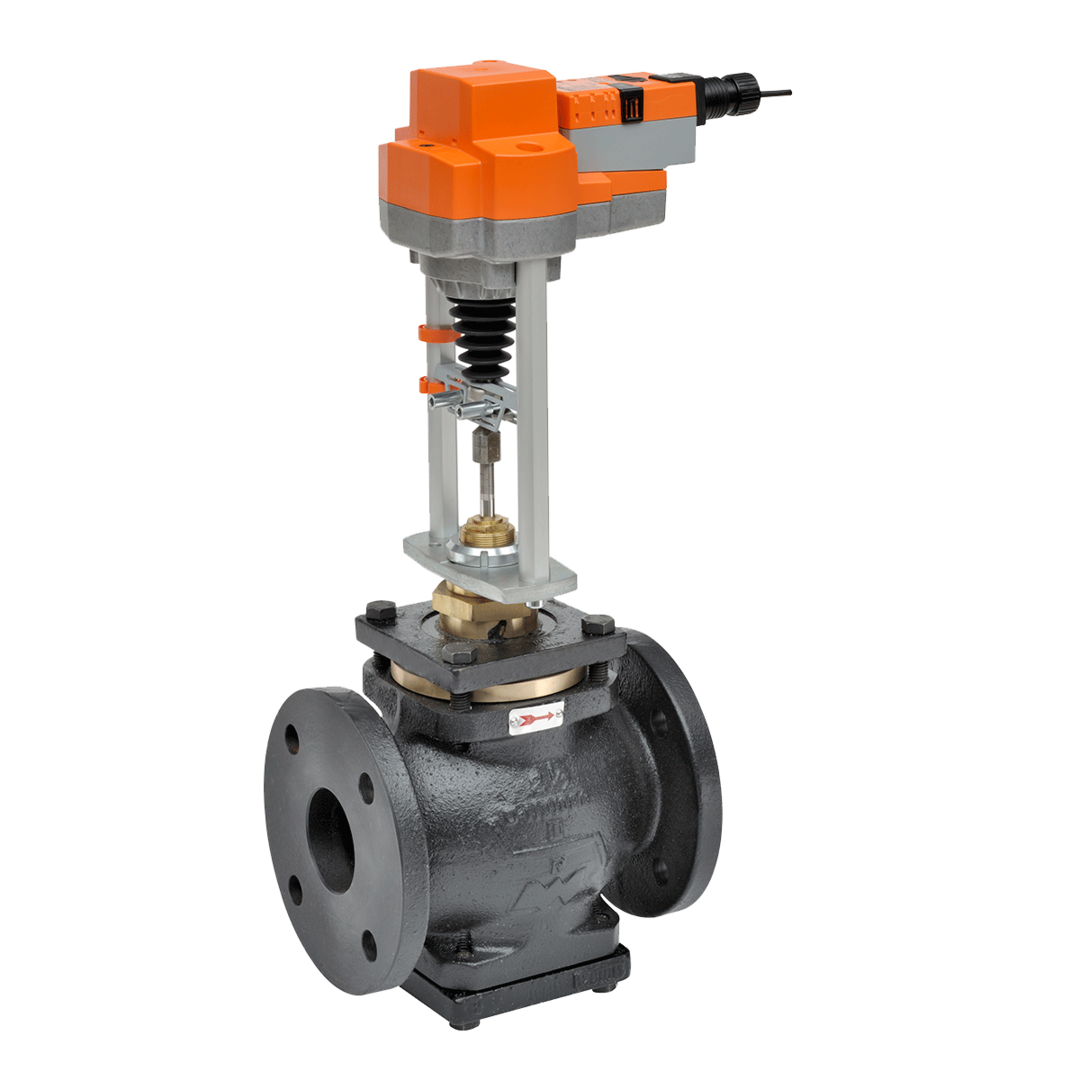

Belimo G680CS+EVB24-SR Globe Valve 3 2 Way 90 Cv w/ Non-Spg 24V

Product Description

The Belimo G680CS+EVB24-SR is a globe valve designed for effective fluid control in various HVAC applications. This valve offers a two-way design with a flow coefficient of ninety, suitable for both chilled and hot water systems, including those with up to sixty percent glycol content. It supports a voltage of twenty-four volts and features a non-fail-safe actuator.

• Two-way valve with a flow coefficient of ninety (Cv)
• Compatible with chilled or hot water and up to sixty percent glycol
• IP54 NEMA2 rated for electrical protection

Product Highlights

This globe valve is ideal for HVAC installations requiring precise temperature control, making it suitable for various chilling and heating applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G680CS+EVB24-SR

Technical Specifications

• ANSI Class: 125
• Controllable Flow Range: Stem up - open A b AB
• Cv: 90
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 3 [80]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Force: 2500 N [560 lbf]
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90 s
• Stroke: 2 [50 mm]
• Voltage AC/DC: AC/DC 24 V
