Belimo G665C+EVB24-SR Globe Valve 2.5 2 Way 65 Cv w/ Non-Spg 24V 2-10V Replacement

Product Description

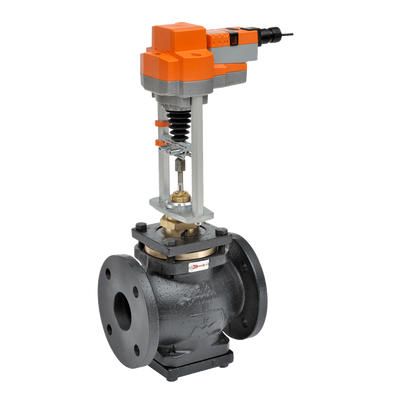

The Belimo G665C+EVB24-SR is a two-way pressure compensated flanged globe valve designed for regulating and controlling fluid flow in HVAC systems. This valve is suitable for use with hot water, chilled water, and steam. The unit comes equipped with the EVB24-SR actuator, which provides reliable energy for fluid control operations. This actuator features a non-spring return mechanism to ensure the valve remains secure during signal loss.

• Pressure compensated flanged globe valve
• Non-spring return actuator
• Reliable fluid control operations

Product Highlights

Belimo’s G665C+EVB24-SR globe valve is engineered for durable use in HVAC systems, including large air handling units and hydronic systems. The actuator type is non-fail-safe with a voltage range of AC/DC 24V. It ensures consistent performance with chilled or hot water up to 60% glycol steam.

Product Information

Standard Information

• Brand: Belimo
• Model: G665C+EVB24-SR
• Category: Globe Valve

Technical Specifications

• Valve Size: 2.5 inches
• Cv: 65
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Trim: Bronze
• Voltage AC/DC: AC/DC 24V
• Force: 2500N (560lbf)
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Actuator Type: Non fail-safe
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90s
• Stroke: 2 inches (50mm)
• Manual Override: 5 mm hex crank (3/16 Allen)
• Electrical Connection: cable
