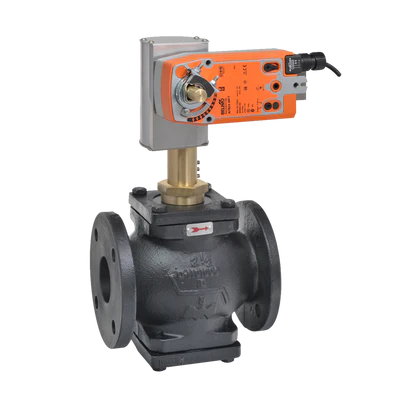

Belimo G665C+AFX24-MFT-X1 Globe Valve 2.5 2 Way 65 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo G665C+AFX24-MFT-X1 is a spring return globe valve designed for precise control in HVAC systems. This valve is typically used in large air handling units on heating or cooling coils. It is compatible with hydronic systems, allowing for variable flow operation.

• Valve Size: Two and a half inches, two way
• Flow Capacity: Cv of sixty-five
• Actuator Type: Spring return, suitable for AC and DC power

Product Highlights

This valve is suitable for use in chilled or hot water systems up to sixty percent glycol and steam applications, depending on actuator combinations.

Product Information

Standard Information

• Brand: Belimo
• MPN: G665C+AFX24-MFT-X1

Technical Specifications

• Valve Size: Two and a half inches
• ANSI Class: 125
• Cv: 65
• Fluid: Chilled or hot water up to sixty percent glycol steam
• End Fitting: Flange
• Angle of Rotation: Ninety-five degrees
• Pressure Independent: No
• Trim: Bronze
• Control Type: MFT/Programmable
• Electrical Connection: Cable
• Manual Override: Five mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): Three W
• Power Consumption (Running): Seven point five W
• Voltage AC/DC: AC/DC twenty-four V
