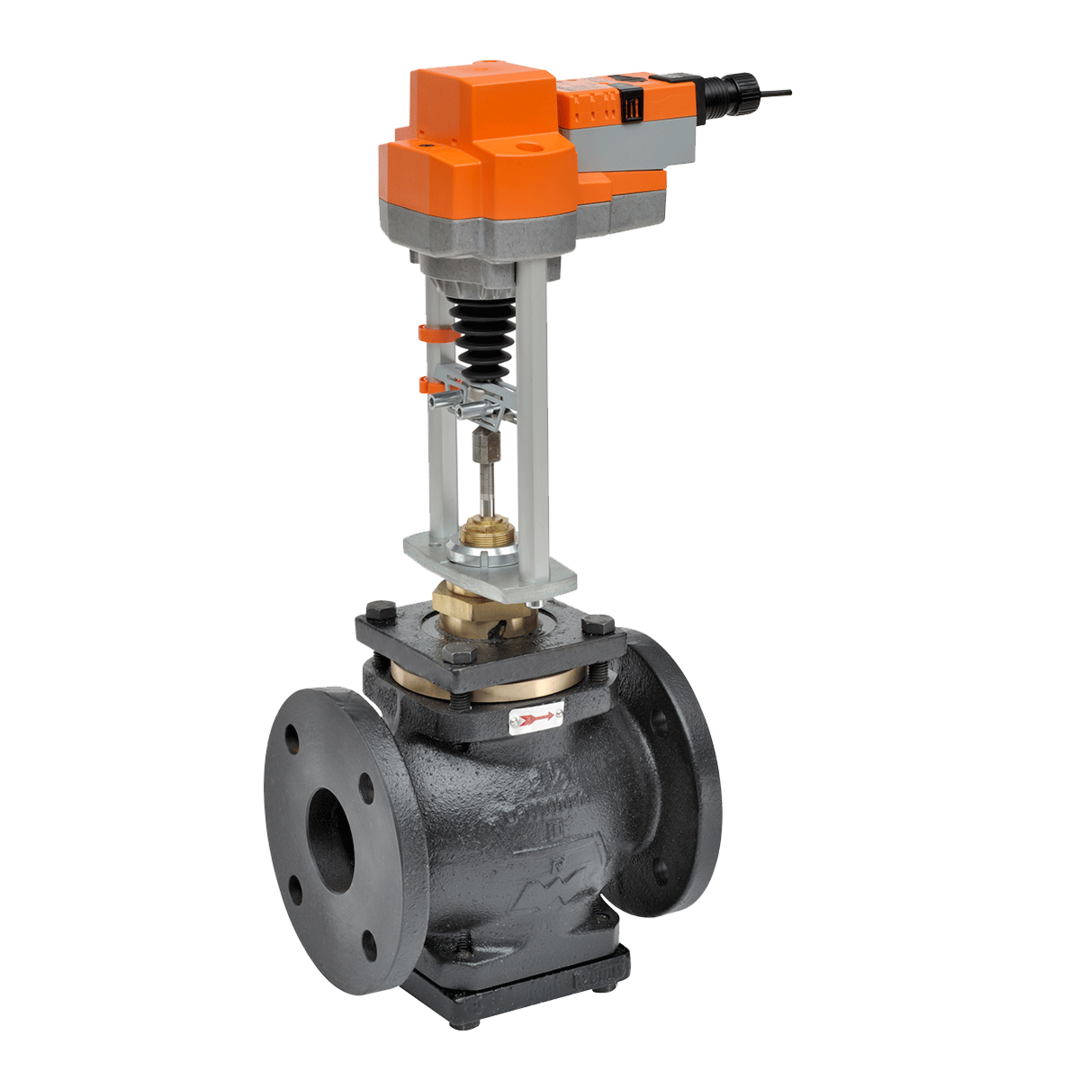

Belimo G6125C+EVB24-MFT Globe Valve 5 2 Way 263 Cv w/ Non-Spg 24V MFT

Product Description

The Belimo G6125C+EVB24-MFT is a reliable globe valve designed for controlling water flow in HVAC systems. This valve operates at a size of five inches and features a two-way pattern for effective operation. It is suitable for both chilled and hot water applications, making it a versatile choice for various environments.

• Valve size is five inches with a Cv of 263.
• Operates on 24V AC/DC power.
• Constructed with bronze trim for durability.

Product Highlights

This globe valve is engineered for long-lasting performance and can handle a range of fluids, including water with up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: G6125C+EVB24-MFT

Technical Specifications

• ANSI Class: 125
• Controllable Flow Range: Stem up - open A b AB
• Cv: 263
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 5 [125]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Force: 2500 N [560 lbf]
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90 s
• Stroke: 2 [50 mm]
• Voltage AC/DC: AC/DC 24 V
