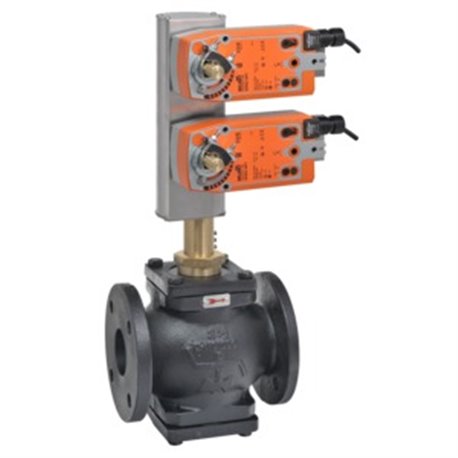

Belimo G6125C+2*AFX24-MFT-X1 Globe Valve Assembly 2 Way 5 in.

Product Description

The Belimo G6125C+2*AFX24-MFT-X1 is a globe valve assembly designed for 2-way operation. This model features a five-inch size and is compatible with various fluid systems. It provides effective control for chilled water, hot water, and low to high-pressure steam applications.

• Flanged design with a 263 Cv rating.
• Cast iron body with stainless steel seat and stem.
• Direct coupled tandem actuator, modulating, and spring return action.

Product Highlights

This valve assembly is designed to provide greater force and flexibility. It is suitable for use with water and can handle inlet pressures from 15 to 100 psi. The new soft seat design ensures compliance with ANSI Class VI leakage standards.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G6125C+2AFX24-MFT-X1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled or hot water, up to 60% glycol, steam
• Power Consumption: 7.5 W running, 3 W holding
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 18 GA appliance rated cable with 1/2 in. conduit connector
• Trim: Bronze
• Valve Size: 5 inches
